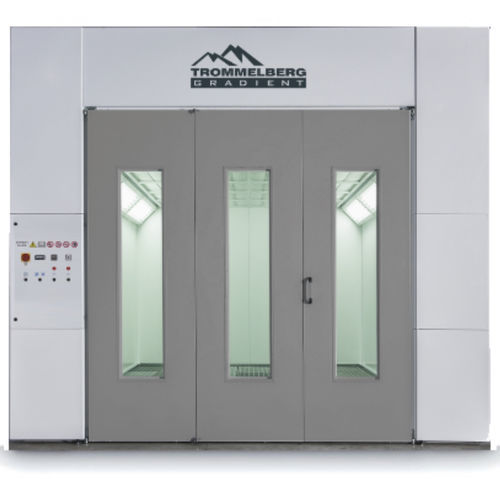

Enclosed spray booth SB7428DB

for vehiclesfilterventilated

Trommelberg Gradient EU made, high quality Spray Booth 7 х 4 х 2.76 m with combined intake-exhaust unit. Main features: Due to partial pre-assembly during production the installation time has been reduced by almost 50%! Due to a highly effective heat exchanger the booth ensures high quality painting in total air exhaust phase and offers very comfortable working conditions throughout the year Fast and effective air heating: application of 4-way construction heat exchanger made of special heat-proof steel substantially increases productivity Four stage air filtering: air intake pocket-type prefilter Eurovent EU4/G4, high efficiency ceiling fine filter F5 / EN779 class, two-stage paint stop filter Eurovent EU3 + Eurovent EU4 (also performs a function of the exhaust filter) Cabin illumination is more than 1500 lux. Technical Data: Dimensions: - - inside (DхWхH) - 7000х4000х2760 mm - outside (DхWхH) - 7160x5010x3740 mm - 3-fold door (WхH) - 2700х2700 mm Heating/ventilating unit: - - air intake motor power - 7.5 kW - air exhaust motor power - 7.5 kW - heating power capacity - 220 kW - max. air capacity in paint phase - 24000 m³/h - max. temperature in spray phase - 30°С (at outside temperature 0°C) - max. temperature in bake phase - 80°С - max. oil consumption (at 20°С) - 19 kg/h (15°E 10200 Cal/kg) Power supply: - Total power - 17 kW Power supply - 3PHx400V/60Hz Lighting power - 1856 W
