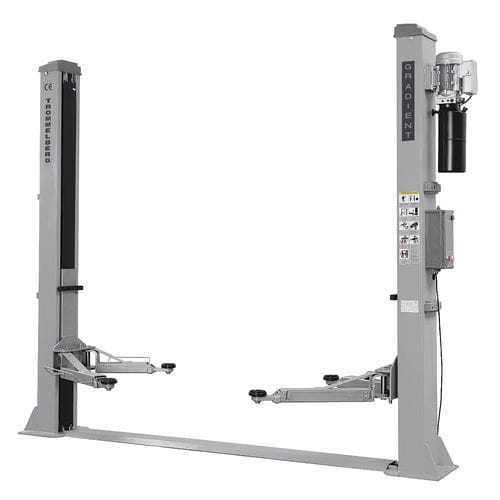

2-post lift TST40E_GR4 tonelectro-hydraulicfor car
Add to favorites
Compare this product
Characteristics
- Type
- 2 posts
- Maximum load
- 4 ton
- Operation
- electro-hydraulic
- Applications
- for car
- Voltage
- 380 V
- Other characteristics
- low profile
- Lifting height
Min.: 90 m
(295'03" )Max.: 1,900 m
(6233'07" )- Motor power
2.2 W
(0 hp)- Column height
2,824 mm
(111.18 in)- Width between colums
2,823 mm
(111.14 in)- Weight
580 kg
(1,278.68 lb)
Description
Electro-hydraulic lift for vehicles up to 4 tons. Equipped with CE certified safety system.
WITH 3 STAGE ARMS
Features:
• Asymmetric lifting arms provide free access to vehicle doors
• Lower synchronization: 2 hydraulic cylinders + 2 pulling cables + 2 synchronization cables
• Safe and reliable electromagnet release
• Lowering without the use of the hydraulic unit
• Manual lock release of emergency lowering valve
• Reinforced lifting carriages to prevent deformation
• 24 V push button control box
• Crash-proof rubber pads provide vehicle door protection
• Slide blocks are made of temperature-resistant, high-strength nylon
• Double safety system: the vehicle is kept at the required height by hydraulic pressure and automatic locking ratchets
• Convenient threaded supports with rubber pads
• Base plates are made of 5 mm sheet steel
• Required foundation depth: max. 150 mm
• Durable powder coating.
