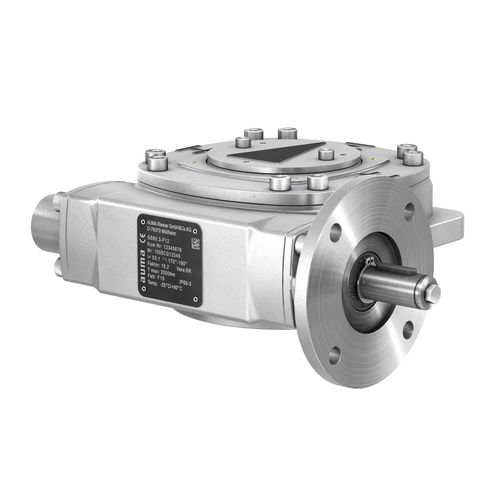

Worm gear reducer GS right anglehollow-shaft> 10 kNm
Add to favorites
Compare this product
Characteristics
- Type
- worm
- Shaft orientation
- right angle
- Shaft configuration
- hollow-shaft
- Torque
- > 10 kNm
- Applications
- drive, for valve actuators
- Other characteristics
- manual, multi-turn
- Gear ratio
Max.: 3,328 unit
Min.: 39 unit
Description
AUMA part-turn gearboxes are used for operating part-turn and special valves (damper, flue gas damper, ball valves).
Type of duty: Short-time duty S2 - 15 min (Open-close duty) and inching/positioning
Intermittent duty S4 - 25 % (Modulating duty only bronze)
They can either be operated in:
- manual operation directly via handwheel
- motor operation (electric multi-turn actuator)
Swing angle 0° to 190° or multi-turn without endstop
Design features
Swing angles up to 190°
With or without primary reduction gearing
360° worm wheel
End stops with travelling nut principle in accordance with AWWA C504
Output drive according to ISO standard
adjustable end stops
All parts within the power drive have been subjected to thermal hardening
Ambient conditions
Enclosure protection IP68
High quality corrosion protection
–60 °C to +120 °C
