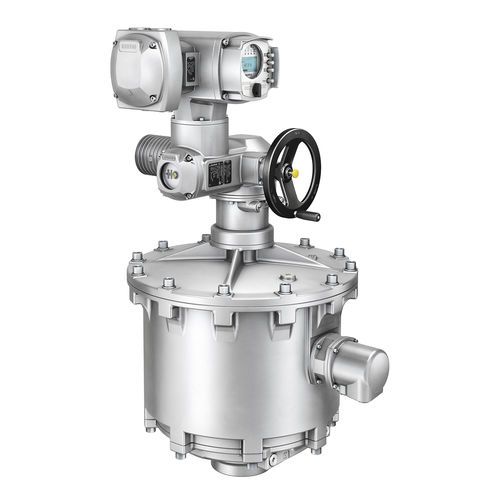

Electric valve actuator FQM seriesmechanicalpart-turncable
Add to favorites
Compare this product
Characteristics
- Type
- electric, mechanical
- Movement
- part-turn
- Technology
- cable
- Phase
- three-phase, single-phase
- Protection class
- IP68, ATEX
- Norms
- ISO 5211
- Other characteristics
- with handwheel, ATEX, anti-corrosion, small
- Torque
Min.: 150 Nm
(110.63 ft.lb)Max.: 1,200 Nm
(885.07 ft.lb)- Ambient temperature
Min.: -30 °C
(-22 °F)Max.: 70 °C
(158 °F)- Rotation angle
Min.: 80 °
Max.: 100 °
- Operating time
Min.: 8 s
Max.: 54 s
Description
With the FQM fail safe unit, AUMA offers innovative and safe actuator solutions for automatic operation of valves in case of emergencies making use of stored mechanical energy.
Constant torque characteristics across the overall torque range.
The spring is not operated during standard operation. As a consequence, actuator sizing can be relatively small.
The end position switches are automatically set during the setting procedure of end positions OPEN and CLOSED and do not require separate adjustment.
Electrical connection via AUMA
plug/socket connector
Cable entries in différent versions
Valve attachments according to ISO
standard
Safe OPENING/CLOSING (ESD)
up to SIL 2 (HFT=0)
or SIL 3 (HFT=1)
Safe end position feedback
up to SIL 2
• EN ISO 13849 safe end position feedback
up to PL c
