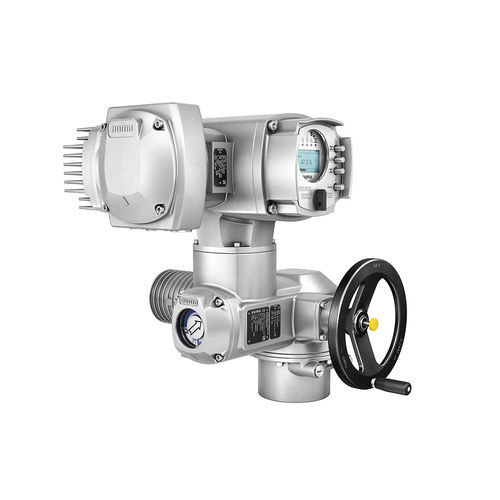

Electric valve actuator SQVEx series manualmechanicalpart-turn
Add to favorites
Compare this product
Characteristics
- Type
- electric, manual, mechanical
- Movement
- 90°, part-turn
- Phase
- three-phase, single-phase
- Protection class
- IP68
- Norms
- ISO
- Other characteristics
- modulating, with handwheel
- Torque
Min.: 150 Nm
(110.63 ft.lb)Max.: 2,400 Nm
(1,770.15 ft.lb)- Power
0 kW
(0 hp)- Ambient temperature
Min.: -30 °C
(-22 °F)Max.: 60 °C
(140 °F)- Rotation angle
Min.: 75 °
Max.: 105 °
- Weight
29 kg, 34 kg, 42 kg, 51 kg
(63.93 lb, 74.96 lb, 92.59 lb, 112.44 lb)
Description
With SQVEx .2 part-turn actuators for open-close duty and SQRVEx .2 for modulating duty paired with ACVExC .2 actuator controls, the proven AUMA SQ/SQR range is enhanced by variable operating time models. AUMA is spearheading market technology, offering a wide operating time range with a ratio of up to 1:10.
Limit and torque sensing
Mains connection: 1-phase and 3-phase
Handwheel for manual operation
Mechanical position indicator
