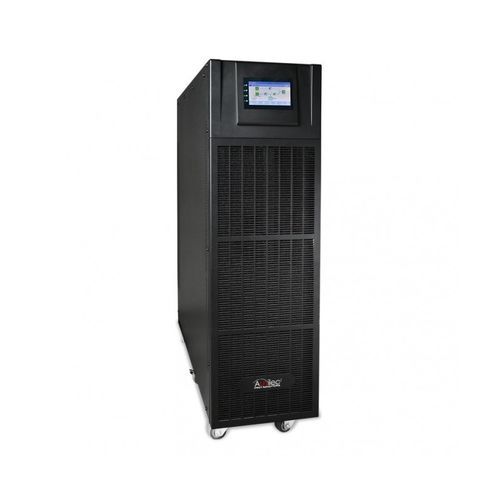

On-line UPS IRIS+TT
parallelACthree-phase

On-line UPS - IRIS+TT - AUNILEC - parallel / AC / three-phase
On-line UPS - IRIS+TT - AUNILEC - parallel / AC / three-phase
On-line UPS - IRIS+TT - AUNILEC - parallel / AC / three-phase - image - 2
On-line UPS - IRIS+TT - AUNILEC - parallel / AC / three-phase - image - 3
On-line UPS - IRIS+TT - AUNILEC - parallel / AC / three-phase - image - 4
Add to favorites
Compare this product
Go to the AUNILEC website for more information

Characteristics

Type
on-line, parallel
Electrical characteristics
AC, three-phase
Other characteristics
with LCD display, Eco mode, modular, redundant, with RS-232 interface, with LED indicator, SNMP, adjustable, with RS-485 interface
Applications
data center, network, medical, server
Configuration
tower
Certifications
IEC, CE, ISO, RoHS
Output power kVA

10 kVA, 15 kVA, 20 kVA, 30 kVA
(13.596212 hp, 20.394317 hp, 27.192423 hp, 40.788635 hp)

Input voltage

Min.: 208 V

Max.: 478 V

Output voltage

380 V, 400 V, 415 V

Power

900 W, 1,800 W, 2,700 W, 13,500 W

Description

The IRIS+TT series is our best “price-performance ratio“ 3/3 phase UPS. Based on our modular UPS technology, we are able to offer extremely small UPS 10-30kVA solutions. A combination of our modular based UPS with a special DC/DC converter, the IRIS+TT UPS can work with a battery voltage of only 192 to 240Vdc (adjustable). It allows to reduce space and the batteries needed as well as the price. Parallel redundancy mode Up to IRIS+TT systems can be connected in parallel to get maximum power capacity. Only one battery is necessary with the parallel redundancy mode. Specifications - Input power factor up to 0,99 (PFC technology) - DSP (Digital Signal Processor) technology Common battery string for parallel units - IGBT technology (rectifier and inverter) - Internal static and manual bypass - Intelligent charging management - Self-test during UPS startup - Internal and external batteries - Unbalanced load acceptable - Wide input voltage range - Battery (DC) cold start - Multifunction touch screen 7'' - Backfeed protection
