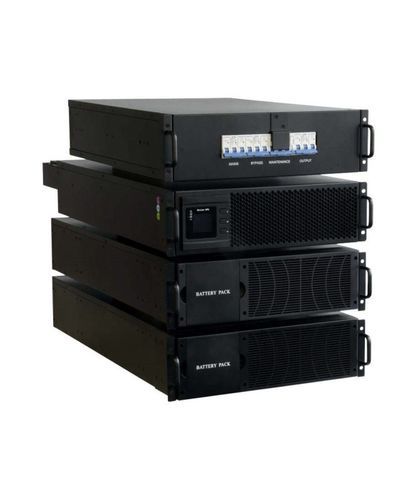

On-line UPS HELIOS-RM

double-conversionparallelthree-phase

Short description
Optional 19\" mounting rails allow installation in standard 19\" cabinet systems. All components—UPS, batteries and connection unit—each require 3U of height.

Specifications
The HELIOS-RM is a compact on-line double-conversion UPS designed for minimal installation space. It supports parallel redundant operation and can be extended with external battery packs for extended autonomy. Its rack design enables plug-in deployment in 19-inch network cabinets. With efficiency >95% in normal operation, it provides an efficient solution for 3-phase power protection.

Features

• On-line double conversion topology
• Compact rack design for 19\" cabinets
• Optional 19\" mounting rails for easy installation
• Each component (UPS, batteries, connection unit) requires 3U height
• Supports parallel redundant operation
• Expandable with external battery packs for extended autonomy
• Efficiency >95% in normal operation
• 3-phase system

Technical specifications

• Model family: HELIOS-RM
• Power range: 10-50 kVA
• Topology: On-line double conversion
• Mounting: 19\" rack (plug-in modules)
• Height per module/component: 3 U
• Redundancy: Suitable for parallel redundant operation
• Battery: Extendable via external battery packs
• Efficiency (normal operation): >95%
• Phases: 3-phase
