Pit jack spreader beam

for vehiclesadjustabletelescopic

Overview

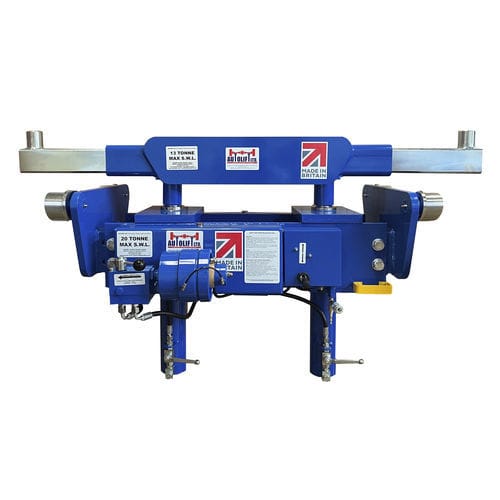

This 13 Tonne Telescopic Spreader Beam is designed to accommodate vehicles with independent front suspensions, particularly buses and coaches. It enables access to jacking points beyond the width of a pit and is a legal requirement for ATF & MOT dedicated test lanes. SEE PICTURES FOR FURTHER DIMENSIONS.

Usage notes
Fully closed the lifting points are 905mm apart and fully extended they are 1385mm apart (centre-to-centre). Full closed overall width is 970mm and fully extended overall width is 1445mm. Pit must be a minimum of 780mm wide for rams to be able to spread far enough apart to fit the Spreader Beam on.

Inclusions / Exclusions

• Spreader Beam (as described)
• JACK NOT INCLUDED
• ADAPTERS NOT INCLUDED

Caractéristiques / spécifications techniques

• Capacity: 13 Tonne
• Type: Telescopic Spreader Beam for Twin Ram
• Designed for: Vehicles with independent front suspensions (e.g. buses and coaches)
• Function: Allows reaching jacking points beyond pit width
• Legal: Required for ATF & MOT dedicated test lanes
• Closed lifting points (centre-to-centre): 905 mm
• Extended lifting points (centre-to-centre): 1385 mm
• Full closed overall width: 970 mm
• Full extended overall width: 1445 mm
• Minimum pit width required: 780 mm
• Jack: Not supplied with product
• Adapters: Not supplied with product
