Pit jack spreader beam

for vehiclesfixedfor single-ram jacks

Product overview

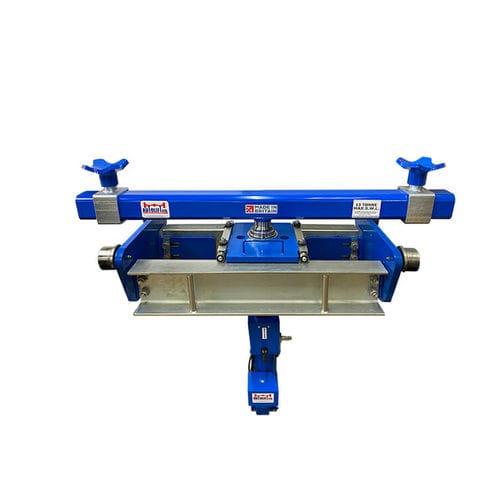

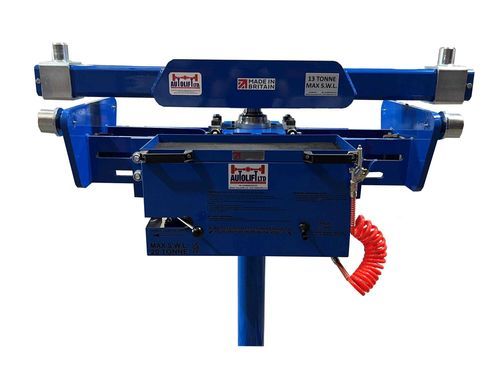

Spreader beam for lifting vehicles with independent front suspension, suitable for buses and coaches. Fixed design rated at 13 tonne, intended for use where jacking points lie beyond the width of a pit and used with single-ram jacks.

Compatible jacks

• 15/20T floor jack
• 15/20T single-ram jack – 750 mm stroke
• 15/20T single-ram jack – 400 mm stroke

Important
JACK NOT INCLUDED
ADAPTERS NOT INCLUDED

Specifications
Dimensions:
Centre-to-centre spear width: 760 mm (minimum) to 1280 mm (maximum), depending on slider position.
Required clearances: 200 mm from bottom of angle/channel to top of spears; 240 mm from bottom of angle/channel to top of dish-head adapter.

Warranty
Designed and manufactured in accordance with Machinery Directive 98/37/EC and BS EN 1494:2001 (materials handling equipment). Each unit is fully tested, marked with a serial number and supplied with a test certificate. 5-year warranty.

Technical specifications

• Commercial name: 13 Tonne Fixed Spreader Beam for Single Ram
• Rated capacity: 13 tonne
• Compatibility: 15/20T floor jack; 15/20T single-ram jack 750 mm stroke; 15/20T single-ram jack 400 mm stroke
• Width (centre to centre of spears): 760 mm – 1280 mm
• Clearance to top of spears: 200 mm (from bottom of angle/channel)
• Clearance to top of dish-head adapter: 240 mm (from bottom of angle/channel)
• Usage note: required for ATF & MOT dedicated test lanes
• Standards: Machinery Directive 98/37/EC; BS EN 1494:2001
• Traceability: each unit supplied fully tested with serial number and test certificate
• JACK NOT INCLUDED; ADAPTERS NOT INCLUDED
