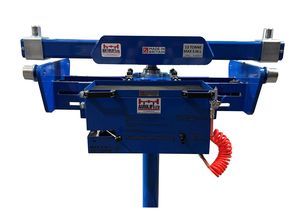

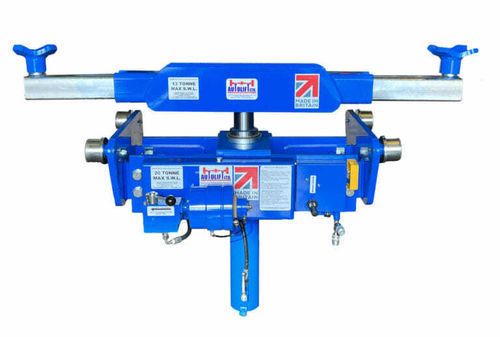

Heavy load spreader beam

for vehiclesadjustabletelescopic

Description
This spreader beam is designed to accommodate vehicles with independent front suspensions, in particular buses and coaches. It allows access to jacking points located beyond the width of the pit and is required for ATF & MOT dedicated test lanes.

Key features

• Fully closed lifting points: 920 mm apart
• Fully extended lifting points: 1400 mm apart
• Required clearance from top of jack frame to underside of vehicle: 320 mm
• Jack not included
• Adapters not included

Compatible jacks

• 15/20T floor jack
• 15/20T single ram jack, 750 mm stroke
• 15/20T single ram jack, 400 mm stroke

Dimensions and warranty
Dimensions
Pit minimum width: 800 mm required for rams to be positioned far enough apart to fit the spreader beam.
Slider width (centre to centre of spears) when closest: 600 mm.
Slider width (centre to centre of spears) when widest: 1260 mm.
Required clearance from bottom of angle/channel to top of dish-head adapter on top of the spears: 320 mm.

Warranty
Designed and manufactured in accordance with Machinery Directive 98/37/EC and engineering standard BS EN 1494:2001 (materials handling equipment). Complies with EC requirements and covered by a 5-year warranty. Each unit is fully tested, marked with a serial number and supplied with a test certificate.

Technical specifications

• Capacity: 13 tonne
• Lifting points spacing (closed): 920 mm
• Lifting points spacing (extended): 1400 mm
• Required clearance (top of jack frame to underside of vehicle): 320 mm
• Pit minimum width: 800 mm
• Slider widths (centre to centre of spears): 600 mm (closest), 1260 mm (widest)
• Required clearance from bottom of angle/channel to top of dish-head adapter: 320 mm
• Compliance: Machinery Directive 98/37/EC; BS EN 1494:2001
• Warranty: 5 years; each unit supplied tested with serial number and test certificate
• Notes: Jack and adapters not included
