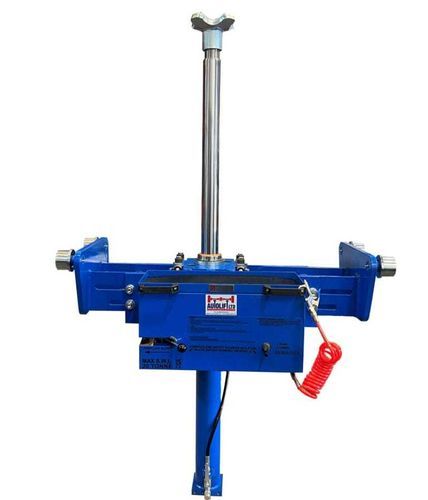

Pit jack

hydro-pneumatic15 tonsfor lifting applications

The 15 Tonne Adjustable Single Ram Pit Jack is a fully adjustable pit jack designed for commercial vehicle lifting, featuring a long 750 mm hydraulic stroke and three frame sizes to suit a wide range of pit dimensions.

Key features

• 15 Tonne capacity.
• 750 mm lifting stroke using a double-acting hydraulic cylinder with chrome-plated rods and advanced seal technology.
• Available in three frame sizes (Small, Medium, Large) to provide broad pit adjustment and versatility.
• Fast-acting air pump for rapid operation.
• Air-over-oil hydraulic design for improved performance and extended cylinder life.
• Ergonomic handles for easy positioning along the pit.
• Tool tray for convenient storage of tools and parts during maintenance.
• Triple-layer safety: safety lowering valves, anti-burst valves and ram lock-off handles. Security struts available as an optional retrofit.
• Each unit is UKCA / CE marked and conforms to EC regulations.
• 5-year warranty (terms & conditions apply).
• Standard supply includes: 1x 125 mm extension, 1x vee head adapter, 1x dish head pansy, rear adapter rack holder and air blow gun.

Available frame sizes and pit adjustment ranges

• Small: Pit Min 750 mm — Pit Max 1030 mm
• Medium: Pit Min 860 mm — Pit Max 1160 mm
• Large: Pit Min 1110 mm — Pit Max 1410 mm

Additional product details

• Beam: covers pit widths from 750 mm to 1400 mm (select frame size according to pit width).
• Wheels: beam runs on four wheels with needle roller bearings; parallel wheels standard for flat pit edges; tapered wheels available for RSJ supporting rails; spring-loaded wheels optional (retract under load to lock position).
• Power pack: high-output hand pump provides required hydraulic flow.
• Rams: 750 mm stroke, fitted with safety hose burst valve and 90° isolation valve for visual confirmation.
• Warranty & testing: designed and manufactured to Machinery Directive 98/37/EC and BS EN 1494:2001; each unit fully tested, serial-numbered and supplied with a test certificate.
• Accessories: 13T telescopic spreader beam; 13T fixed spreader beam available.

Technical specifications

• Capacity: 15 Tonne
• Hydraulic stroke: 750 mm
• Frame sizes: Small / Medium / Large (see pit min/max above)
• Included accessories: 125 mm extension, vee head adapter, dish head pansy, rear adapter rack holder, air blow gun
• Safety: safety lowering valves, anti-burst valves, ram lock-off handles (security struts optional)
• Drive/actuation: air-over-oil hydraulic system with fast-acting air pump (hand pump power pack)
• Standards: UKCA / CE marked; complies with Machinery Directive 98/37/EC and BS EN 1494:2001; supplied with test certificate and serial number
• Warranty: 5 years (T&Cs apply)
