Pit jack

hydro-pneumatic15 tonsfor lifting applications

Product overview

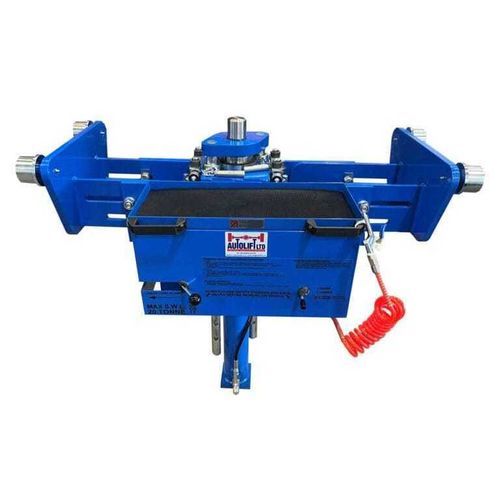

The 15 Tonne Adjustable Single Ram Pit Jack with Security Struts is UK-made and designed for commercial vehicle lifting in workshop pit environments. It features an air-over-oil hydraulic system, multiple independent safety mechanisms and is supplied with a practical accessory pack as standard.

Key features

• 15 Tonne capacity.
• 750 mm lifting stroke (double-acting hydraulic cylinder).
• Fast-acting air pump with air-over-oil hydraulic design for improved performance and increased cylinder life.
• Ergonomic handles for easy positioning along the pit.
• Tool tray for convenient access to tools and parts during service.
• Four-layer safety: safety lowering valves, anti-burst valves, ram lock-off handles and a manual Security Strut Safety Mechanism (pins inserted into struts to prevent accidental lowering).
• Standard supply includes: 1×125 mm extension, 1× vee-head adapter, 1× dish-shaped head adapter, rear adapter rack holder and an air blow gun.
• UKCA / CE marked; conforms to EC regulations.
• 5 year warranty (terms and conditions apply).

Range of adjustment (frame sizes)

• Small — Pit Min: 750 mm — Pit Max: 1030 mm
• Medium — Pit Min: 860 mm — Pit Max: 1160 mm
• Large — Pit Min: 1110 mm — Pit Max: 1410 mm

Product components & design notes

• Beam: covers pit widths from 750 mm to 1400 mm (select frame size to suit application).
• Wheels: four wheels with needle roller bearings for smooth movement; parallel wheels standard for flat pit edges; tapered wheels available for RSJ supporting rails; spring-loaded wheels available on request (retract under load to lock position).
• Power pack: high-output hand/air pump delivering the required flow for the cylinders.
• Rams: chrome-plated rods with advanced seals; cylinder fitted with hose-burst valve and a 90° isolation valve for clear position confirmation.
• Each unit fully tested, serial-numbered and supplied with a test certificate; design and manufacture conform to the Machinery Directive and relevant standards.

Technical specifications

• Capacity: 15 Tonne.
• Lifting stroke: 750 mm (double-acting hydraulic cylinder).
• Frame sizes / pit adjustment ranges: Small (750–1030 mm), Medium (860–1160 mm), Large (1110–1410 mm).
• Standard supply: 1×125 mm extension, 1× vee-head adapter, 1× dish-shaped head adapter, rear adapter rack holder, air blow gun.
• Safety: safety lowering valves, anti-burst valves, ram lock-off handles, Security Strut Safety Mechanism (manual pinning).
• Wheels: needle roller bearing wheels; parallel standard, tapered or spring-loaded options available.
• Hydraulics: air-over-oil design; hose-burst valve; 90° isolation valve.
• Compliance: UKCA / CE marked; conforms to EC regulations and relevant standards (units tested and supplied with a test certificate).
• Warranty: 5 years (terms and conditions apply).
