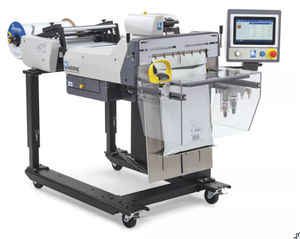

Vertical bagging machine AUTOBAG® 550™

HFFSautomatichigh-speed

Overview
The AUTOBAG® 550 is an automatic high-speed bagging and printing system designed for industrial packaging lines. It combines next‑bag‑out thermal transfer printing with automatic filling and sealing to streamline throughput for components, retail goods and e‑commerce order fulfilment. The system supports ambidextrous operator access and offers optional orientation and integration accessories.

Key performance

• Cycle speed: up to 45 bags per minute
• Supported bag sizes: width 55–300 mm, length 130–550 mm (2–12 in W x 5–20 in L; 36 in L unsupported)
• Adjustable pass-through: up to 125 mm
• Weighing/load capacity: up to 2.2 kg (with load shelf)

Features and benefits

• Next‑bag‑out thermal transfer printing eliminates a separate labeling step and prevents product queueing
• Multi‑position unwind with tension control simplifies film changeovers
• Redesigned sealing area with temperature control and optional seal‑flatteners for consistent seals
• AutoTouch™ operator screen with tutorials, diagnostics and performance monitoring
• Processor‑controlled servo motors and Ethernet connectivity for easy integration
• Compact footprint, simple height adjustment and castors for ergonomic operation
• Optional 45° tilt and a range of infeed funnels, counting systems and bags‑in‑a‑box adapters
• Modular components and dedicated service access to reduce downtime

Operation & design notes
Designed for safe hand‑load operation without light curtains or dual palm switches, the AUTOBAG® 550 offers configurable left or right access to HMI, cycle controls, ribbon and bag loading. A minimalist design with few moving parts reduces lifetime maintenance; on‑board diagnostics and modular assemblies support fast troubleshooting and service. The machine can be networked for central monitoring and full pack‑station integration.

Specifications
Weight: 176 kg (390 lb)
Electrical: universal input 110–240 V AC, 50/60 Hz
Power consumption: 600 W (VA) max
Air: 5 CFM / 80 psi clean, dry air
Footprint width: 955 mm (adjustable)
Height: 943–1,196 mm
Length: 1,639 mm
Pass‑through: 125 mm max
Bag thickness: 35–100 µm
Bag sizes: W 55–300 mm, L 130–550 mm (36 in L unsupported)
Weighing capacity: up to 2.2 kg (with load shelf)

Technical specifications

• Cycle capability: up to 45 bags/min
• Weight: 176 kg (390 lb)
• Electrical: 110–240 V AC, 50/60 Hz
• Max power: 600 W (VA)
• Air requirement: 5 CFM at 80 psi (clean, dry)
• Dimensions (W×H×L): 955 mm × (943–1,196 mm) × 1,639 mm
• Pass‑through: 125 mm max
• Bag thickness range: 35–100 µm
• Supported bag sizes: W 55–300 mm; L 130–550 mm
• Optional additions: infeed funnels, seal flatteners, raised unwind, SimpleCount™ counting system, bags‑in‑a‑box adapter
