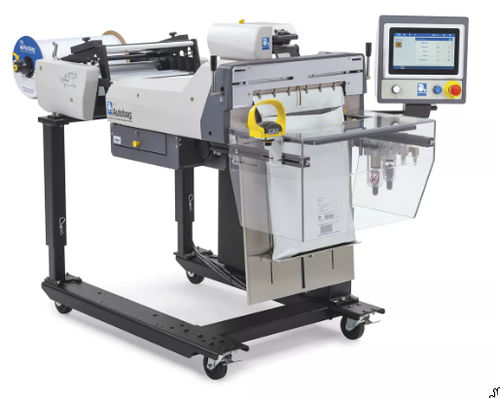

Horizontal bagging machine AUTOBAG® 650™

HFFSautomaticfor large bag

Overview
The AUTOBAG® 650 is a high-speed, wide horizontal bagging and thermal-printing system engineered for reliable, flexible wide-bag packaging. It supports large-area loading and is designed to optimize throughput for ecommerce order fulfillment, short-run and build-on-demand processes while minimizing floor space and simplifying operator use.

Bag size options
Compatible bag widths: 100–400 mm (4–16 in); lengths: 140–900 mm (5.5–35 in) (36 in/914 mm unsupported unsupported for some lengths).

Key capabilities

• Wide-bag handling for ecommerce, mail-order and bulk product packaging
• Next-bag-out thermal transfer printing positioned over the next bag to ensure accurate, on-demand labeling
• Multi-position unwind with tension control for fast, repeatable changeovers
• AutoTouch™ touchscreen with tutorials, help system, diagnostics and performance monitoring
• 16 in (400 mm) wide loading area for large or bulk items; optional 45° tilt or horizontal orientation for long/delicate products
• Configurable left- or right-hand access to HMI, cycle controls, ribbon and bag loading

Features and benefits

• Next-bag-out printing reduces product queuing and eliminates separate labeling steps
• Improved sealer area with temperature control and optional seal flatteners for consistent seals
• Processor-controlled servo motors and ethernet-capable networking for simplified integration
• Compact footprint with caster and simple height adjustment for operator ergonomics and portability
• Adjustable pass-through up to 150 mm (6 in) to handle varied product profiles
• Modular components and dedicated service access for faster maintenance and maximized uptime
• Optional accessories: infeed funnels, seal flatteners, raised unwind, SimpleCount™ counting, bags-in-a-box adapter

Applications
Designed for ecommerce and mail-order fulfillment, short-run print & pack, build-on-demand and other wide-bag packaging workflows that require printed bags and high throughput.

Technical Specifications

• Weight: 277 kg (approx. 450 lbs)
• Electrical: Universal input 110–240 VAC, 50/60 Hz
• Power consumption: 750 W (VA) max
• Air feed: 5 CFM / 80 psi (clean, dry air)
• Machine width: 874 mm (adjustable)
• Loading table height: 837 mm; HMI top height: 1,361 mm
• Length: 1,692 mm
• Pass-through (adjustable): up to 150 mm
• Bag thickness: 35–100 µm (1.09–4.0 mil)
• Bag sizes: width 100–400 mm; length 140–900 mm
• Cycling speed capability: up to 40 bags per minute
• Weighing capacity (with load shelf): up to 2.3 kg (5 lbs)
