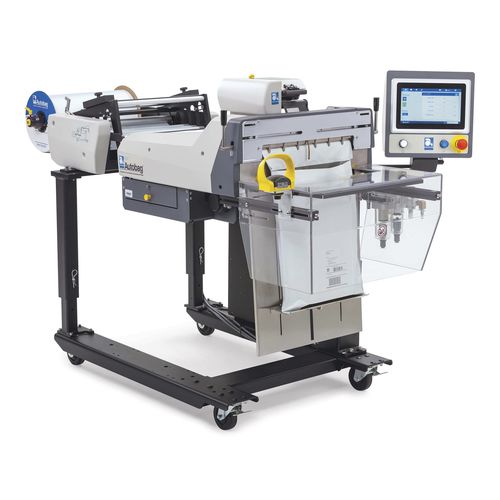

Horizontal bagging machine AUTOBAG® 650™

HFFSautomaticfor single-bag

Overview
The AUTOBAG® 650™ is a wide automatic bagging and thermal printing system engineered for industrial packing lines where high throughput, repeatable performance and simple integration are required. The system supports next-bag-out thermal transfer printing positioned over the next bag to eliminate a separate labeling step and reduce product queueing.

Key capabilities
Configurable left- or right-hand access for HMI and loading zones. Network-capable for pack-station integration and central monitoring. Optional 45° tilt for long or delicate products. Modular design and on-board diagnostics simplify maintenance and maximize uptime.

Bag Size & Speed
Bag size options: from 4" W x 16" L to 5.5" W x 22" L (up to 36" L unsupported). Cycling speed capability: up to 40 bags per minute.

Features and Benefits

• Next-bag-out thermal printing for accurate on-demand marking and removal of separate labeling operations
• Multi-position unwind with tension control to simplify material changeover
• AutoTouch™ control screen with operator tutorials, help system, on-board diagnostics and performance monitoring
• 16" (400 mm) wide bag loading area suited to large or bulk products
• Redesigned sealer area with improved temperature control and optional seal-flatteners for consistent seals
• Processor-controlled servo motors, Ethernet-capable networking and flexible mechanical design for easier integration
• Compact footprint with simple height adjustment and casters for portability
• Horizontal configuration available for expanded workspace in e‑commerce fulfilment
• Adjustable pass-through up to 6" (150 mm) for handling varied product profiles
• Easy integration with third-party systems and optional accessories (funnels, seal flatteners, raised unwind, counting system, bags-in-a-box adapter)

Specifications

• Weight: 450 lbs (205 kg)
• Electrical: Universal input 110–240 V AC, 50/60 Hz
• Power consumption: 600 W (VA) max
• Air feed: 5 CFM / 80 psi of clean, dry air
• Machine width: 41.6 in (1,057 mm) adjustable
• Height: 37.1–47.1 in (943–1,196 mm)
• Length: 69.5 in (1,765 mm)
• Pass-through: up to 6 in (150 mm)
• Bag thickness: 1.09–4.0 mil (35–100 µm)
• Bag sizes supported: W 4–16 in (100–400 mm); L 5.5–22 in (140–680 mm)
• Weighing capacity: up to 5 lbs (2.2 kg) with load shelf
