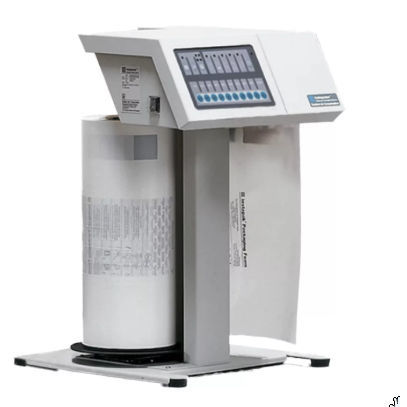

Foam-in-bag protective packaging machine Instapacker® Tabletop

compact

Overview
The SEALED AIR® Instapacker® tabletop foam-in-bag system is designed for low- to medium-volume packaging operations. The system produces up to 16 Instapak® expanding foam bags per minute and features an intuitive control panel with 10 preset foam-fill settings. Its compact footprint makes it suitable for space-limited shipping rooms and pack stations. Compatible with a wide range of Instapak® foams and configurable for two 55-gallon drums or two 15-gallon cubes of liquid foam.

Features and Benefits

• Production up to 16 bags per minute
• Adjust foam fill using any of 10 preset touch keys
• Selectable 3- or 6-second delay between bags
• Option for continuous bag production
• Compatible with multiple Instapak® expanding foam formulations
• Compact footprint for easy integration into packing lines and stations

Specifications
Dimensions: 19 in L × 19 in W × 28 in H (48 cm × 48 cm × 71 cm)
Container options: two 55-gallon drums or two 15-gallon cubes of liquid foam
Bag sizes supported: 19 in × 16 in (48 cm × 40.6 cm) and 19 in × 24 in (48 cm × 61 cm)
Electrical: 200–240 VAC dedicated circuit, 30 A, single-phase
Receptacle: NEMA L6-30R (UL and CE approved)

Technical specifications

• Production rate: up to 16 Instapak® foam bags per minute
• Control: intuitive panel with 10 foam-fill presets
• Timing: selectable 3 or 6 second delay between bags; continuous-run option
• Compatibility: supports a wide range of Instapak® expanding foams
• Footprint: compact design for shipping rooms and pack stations
• Electrical requirements: 200–240 VAC, 30 Amp, single-phase
• Receptacle: NEMA L6-30R (UL and CE approved)
• Container options: two 55-gallon drums or two 15-gallon cubes
• Bag formats supported: 19 in × 16 in and 19 in × 24 in
