Coil winder ProPad

paperbatchautomatic

Overview

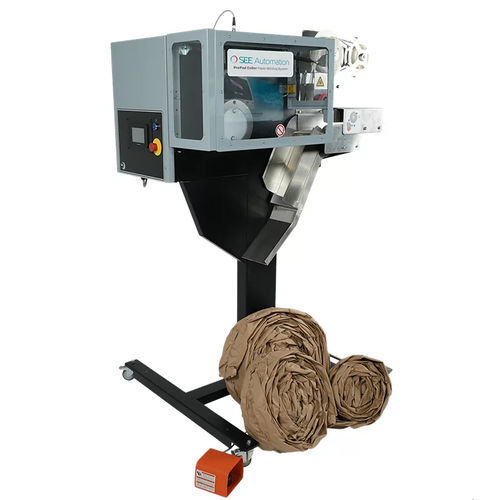

The SEALED AIR® ProPad Coiler is a hands-free paper coiling machine that produces durable, 100% recyclable paper coils for heavy-duty cushioning applications. As an accessory to the ProPad system, it enables on-demand production of customizable coils for sectors such as automotive, industrial supply and fulfillment operations, reducing handling time and packaging waste.

Features and Benefits

• Hands-free, on-demand creation of durable paper cushioning coils for heavy-duty protection.
• Adjustable coil density and width to tailor cushioning to product weight and size.
• Coils can be batched and moved by cart to pack stations to streamline workflow.
• Secure coil placement prevents unraveling before use, minimizing material waste.
• Accepts 29 in (73.5 cm) fanfold paper and rollstock; compatible with 1- and 2-ply materials.
• Produces 100% recyclable paper coils to support sustainable packaging operations.

Specifications
System footprint: 71 in (180 cm) L x 44.5 in (113 cm) W x 75 in (190.5 cm) H (including ProPad system)
System weight: 340 lbs (154 kg)
Paper coil weight: 7 lbs (3.2 kg)
Paper width: 29 in (73.5 cm) fanfold and rollstock; 1 & 2 ply
Output coil diameter: 12–24 in (30.48–60.96 cm), adjustable in 1 in (2.54 cm) increments
Compatibility: Compatible with SEALED AIR® ProPad base unit and accessories

Technical specifications

• Footprint: 180 x 113 x 190.5 cm (L x W x H) including ProPad system
• System weight: 154 kg
• Paper coil weight: 3.2 kg
• Paper width: 73.5 cm fanfold and rollstock; 1–2 ply
• Output coil diameter: 30.48–60.96 cm adjustable in 2.54 cm steps
• Material compatibility: SEALED AIR® recyclable paper (1–2 ply)
