Automated filling system

boxfor paperin-line

Overview

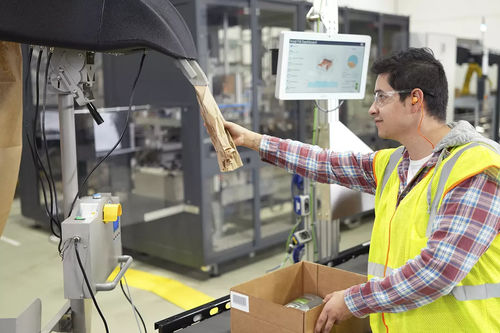

The SEALED AIR® Automated Void Sensing System inspects each box inline using a photo eye and barcode scanner to calculate void volume and command the FasFil® Jet paper dispenser to deliver the precise amount of cushioning. Integrated with conveyors and FasFil® Jet, the system automates void-fill dispensing with 100% curbside recyclable paper, reducing material waste, increasing throughput, and minimizing manual handling while improving packing consistency.

Key Features and Benefits

• Accurate void detection and paper dispensing eliminates over- or under-filling
• Automated void fill reduces labor dependence while increasing throughput
• Uses 100% curbside recyclable kraft paper produced at Sealed Air facilities
• Optimized fill delivers cleaner, more secure packages and consistent right-sized protection

Streamlined Operations
Direct integration with conveyor systems and the FasFil® Jet removes the need for manual paper insertion and simplifies line balancing.

Package Optimization
Real-time box dimension assessment adjusts paper output to match actual void volume, reducing overpacking and packaging waste while preserving product protection.

Frequently Asked Questions

• What are void fill systems used for? Void fill is used to fill empty spaces in shipping boxes to keep items secure during transit, preventing movement or damage and speeding up the packing process with efficient, configurable paper solutions.
• Is Sealed Air paper void fill recyclable? Yes — Sealed Air® paper void fill materials are made from kraft paper that is 100% curbside recyclable.

Specifications

• System Dimensions: 153” H x 57” L x 49” W (287 cm x 145 cm x 124 cm)
• Electrical: 120V, 5A
• Conveyor Integration: Max width 34” (86 cm)
• Maximum Box Height (including flaps): 32” (81 cm)
• Throughput Rate: dependent on box size
• System Components: Void Sensing Scanner; Barcode Reader; Scanner Photo Eye; Customer-supplied discharge photo eyes (Zone 1 & Zone 2); FasFil® Jet Paper Dispensing Machine
• Paper Specifications: 30# – 1-ply Kraft Fan Fold, 30” x 1600 ft (SAP: 100776238); 35# – 1-ply Kraft Fan Fold, 30” x 1200 ft (SAP: 101023580)
