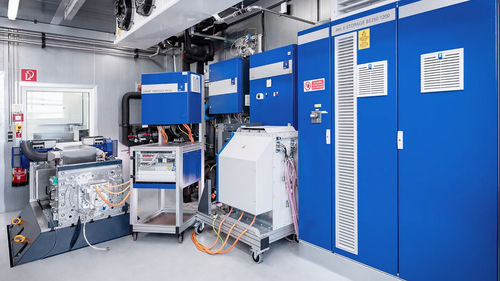

Electric motor test bench E-Motor TS™

torquespeedpower

An e-motor testbed must meet many requirements to ensure a fast and reliable test process. Testing units under test (UUT) with different performance levels in terms of power, current, voltage, speed, and torque, as well as different technologies such as PMSM, ASM, and EESM, requires a sophisticated testbed design. In order to accelerate the development process, it is crucial to frontload activities to ensure seamless integration of the powertrain into the vehicle. An e-motor test system should be flexible enough to test the full range of speeds and torques, with robust mechanics and a driveshaft system. To meet tight schedules, our optimized test system efficiently handles validation and verification tasks, ensuring seamless integration of e-motor technologies for accelerated development. Ensuring that the performance, efficiency and drivability of your e-drive perfectly matches the vehicle requires extensive testing and optimization. The AVL E-Motor TS™ Performance system, including software packages and ready-to-use applications, allows you to quickly develop, test and validate your e-drive to the highest quality standards. Our system serves as a comprehensive environment for the development, testing, verification and validation of electric drives, focusing on electrical, mechanical and thermal characteristics. With our proven software toolchain, it optimizes electric drives for maximum efficiency and NVH performance. The AVL E-Library enhances the validation process with automated test reporting, while ISAC and VSM offer precise tuning and validation for real-world vehicle operation.
