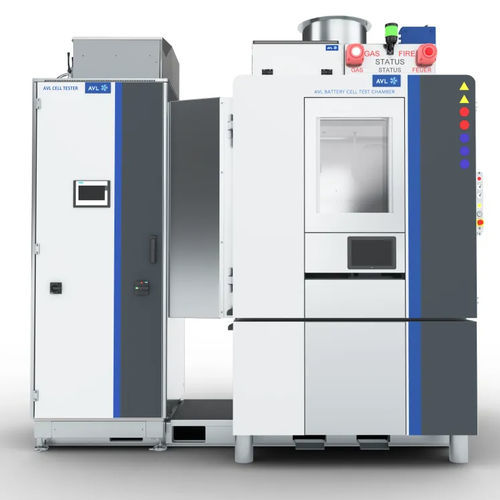

Battery testing system AVL Cell TS™

impedancevoltagelaboratory

A battery cell test system is a testbed that includes at least one temperature chamber, a cell cycler in the appropriate current and voltage range, and an software automation system, for running entire laboratories with several thousand cell test channels. Special equipment such as Electrochemical Impedance Spectroscopy (EIS) can be integrated and operated within our AVL Battery Cell TS™.

Our systems are pre-commissioned to significantly reduce on-site setup time, accelerating deployment and helping you to speed up your time-to-market.



Climate Chamber
We offer different chambers with and without humidity. The typical temperature range is between -40 and +90 °C.

Cell Cycler
The AVL CELL TESTER™ Performance Line cyclers covers current ranges from 300A and
600A (12 channels) up to 2,400A with parallelized power channels
• Best-in-class efficiency through bi-directional operation: Minimal conversion losses for optimal energy usage
• 1kHz Interface: Ensures high-speed communication and precision control Climatic Chambers • Equipped with overpressure flap and door locking
• All kinds of climate conditions such as temperature and humidity

Safety System
• Our safety system is tailored to the expected risk level of the customer cell, leveraging insights from our comprehensive cell analysis database
• Built with flexibility, the safety system can be upgraded later to accommodate future project requirements

Cell Fixture Shelf
• Designed for a variety of battery cell formats sizes and tab design, such as prismatic, pouch,
cylindrical
• Provides space for up to 12 battery cell channels

Testbed Automation & Software
• AVL’s automation software enables complete DVP testing as well as specific test routines
• Simple to use web interface with line-based programming

Transportation Frame
• Complete system setup on transportation frame
• Easily movable and adaptable to meet future testlab extension plans
• Ready to use due to short commissioning time
______________________________________________________________________________

TECHNICAL DATA

• Chamber temperature range | -40 °C to +80 °C
• Chamber temperature gradient | Up to 5K/min*
• DUTs per chamber | Up to 12
• Cell types / Max. Cell measures | Prismatic, pouch, cylindrical 750 mm x 300 mm x 130 mm
• Current | Up to 2,400 A
• Voltage | 6V at UUT
• Current accuracy | 0,01% AV / 2,5mA single range
• Dynamic control | T10-90: down to 0.5ms
• Test system hardware cooling | Water cooled solution
• Safety system | HZL2, HZL4 or HZL6

Optional additional equipment (for Performance line only)
• EIS integrated in cycler
• Temperature
• Pressure, displacement

Sustainability and energy consumption
• Single stage CO2 cooling unit
• GWP = 1
