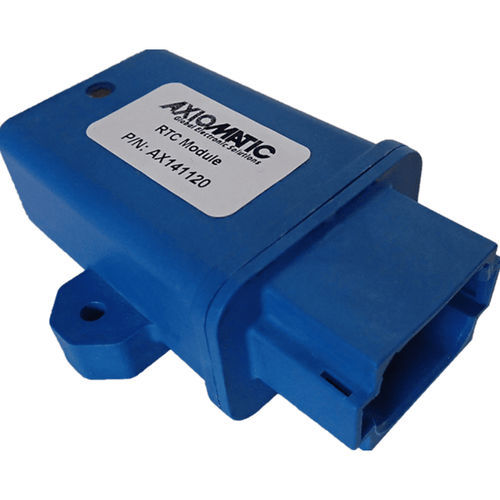

Real-time clock module AX141120

The RTC Module permits time and date information with a battery backed up Real-Time-Clock (RTC). It has one universal signal input and SAE J1939 CAN bus ports. The universal input can interface with a command signal (0-5V; 0-10V; 4-20 mA; Frequency or PWM) or it can serve as “clock synchronization” trigger. For example, the RTC date and time could only be set when the input is triggered. The battery backup permits 15 years of operation. Power is 12V, 24V or 48Vdc nominal. The controller is ruggedly packaged for harsh operating environments. Specifications No. of Input(s) 1 Input(s) Universal Signal Input, selectable as follows. 0-5V 0-10V Frequency PWM CAN Port(s) CAN (SAE J1939) with Auto-Baud-Rate Detection Operating Voltage 12VDC, 24VDC or 48VDC Nominal (8…90 VDC) Control Logic Standard embedded software is provided Enclosure Molded Enclosure, Integral Connector Nylon 6/6, 30% Glass Ultrasonically Welded 3.47 x 2.75 x 1.31 Inches 88.2 x 70.0 x 33.3 mm L x W x H Including Integral Connector Connection(s) Integral TE Deutsch equivalent 8 pin receptacle Operating Temperature -40 to 85 ºC -40 to 185 ºF User Interface Axiomatic Electronic Assistant P/N: AX070502 or AX070506K Applications Heavy Equipment Industrial Cranes
