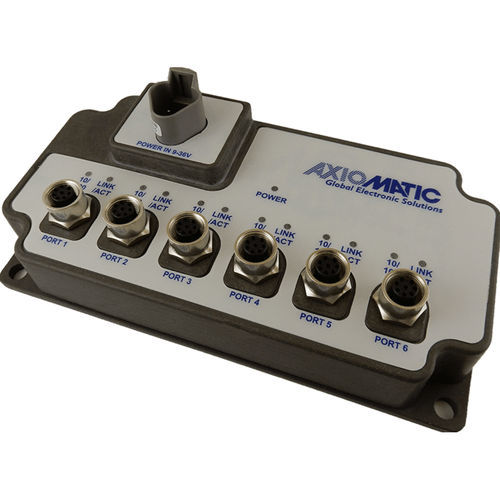

Unmanaged ethernet switch AX140700C

6 portsLAN

The Ethernet Switch operates as an unmanaged switch that is capable of handling communication of 6 different Ethernet capable devices. Each port can communicate up to 100mbps and has LED indicators showing the status of the ports. This module can be powered through either the power input connector, or through port 1. It can also power two external devices through ports 2 and 3, connecting them to the input power. Each of these two ports has over current protection that triggers at 1A. Specifications Input(s) 1 Accessory Switch Input, 0-36Vdc Switch enabled > 2.0 Vdc Switch disabled < 0.8 Vdc The input accessory switch can shut down the device and Port and 3 power sourcing. If power is applied through port 1, input accessory switch is ignored. Output(s) Power output is available from Ports 2 and 3. 9…36Vdc (Vps) 1.4A current maximum Ethernet Port(s) Auto-MDIX LAN 10/100 Base-T Up to 100m transmission distance 10 or 100 Mbps transmission speed Operating Voltage 12VDC or 24VDC Nominal (8...36 VDC) Enclosure Cast aluminum, anodized 7.250 x 3.750 x 1.694 inches 184.15 x 95.25 x 43.04 mm (L X W X H) Connection(s) 6 CONEC M12 8-pin connectors (A-coded), P/N: 43-01332 (Connectors 1-6). Operating Temperature -40 to 65 ºC 40 to 149 ºF Compliance CE MarkingCompliant to the EMC Directive cURus to UL60950 EN60950-1 FCC Part 15 RoHS Directive Applications Mining Equipment Off-highway Equipment
