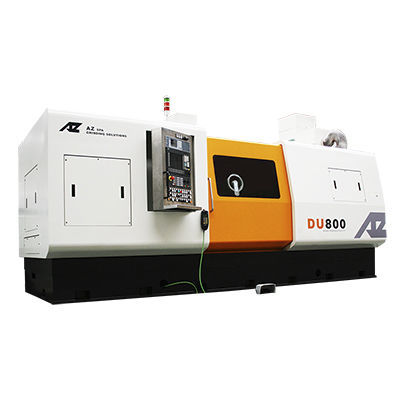

Orbital grinding machine DUfor crankshaftscamshaftprecision
Add to favorites
Compare this product
Characteristics
- Type
- orbital
- Applications
- for crankshafts, camshaft
- Other characteristics
- precision, high-productivity
- Distance between centers
Max.: 3,050 mm
(120 in)Min.: 30 mm
(1 in)- Grinding wheel diameter
Max.: 1,066 mm
(42 in)Min.: 610 mm
(24 in)
Description
+ LARGE BATCH PRODUCTION
+ SINGLE OR DOUBLE WHEELHEAD CARRIAGE
+ BASE MADE OF COMPOSITAL
+ WHEELHEAD MOVES ON X and Z AXIS
This machine model has been designed for high production batches, the machine can be equipped with a double wheelhead carriage with two wheels that can work simultaneously. The DU base is made of a composite material of concrete and steel specifically designed to obtain the best result between structural deformations and natural frequencies allowed.
VIDEO
