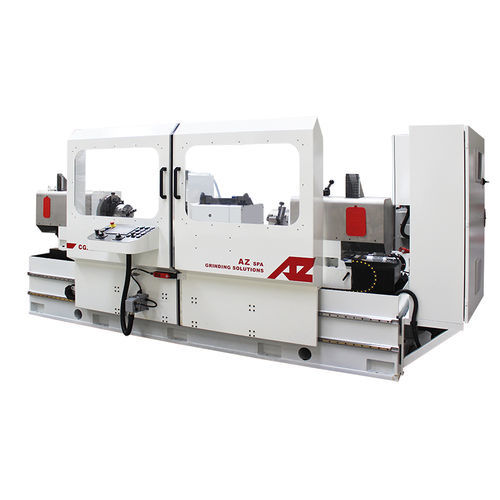

Crankshaft grinding machine CGX270-360

workpieceball screwCNC

The machine is designed with a monolithic steel base filled with composite material, designed to obtain the best result between structural deformations and vibration damping. The machine has the following axial configuration: the grinding head slides along the X and Z axes by by recirculating ball systems, the movement is done by ball screw system and motor. The workpiece is clamped between headstock and tailstock, the tailstock moves manually along the table via linear guides with recirculating rollers. This machine configuration allows its overall space to be significantly reduced compared to mobile table solutions. The machine is equipped with a fixed point diamond dressing station located on the back of the headstock. The machine is equipped with CNC control system with these features: Plunge grinding, with integrated face machining capability Traverse grinding Dressing program (face-radius-chamfer-taper) Correction of the workpiece taper in the traverse cycle Integrated remote assistance module Height centers [mm] 270-270-360 Swing over table [mm] 540-540-720 Max distance between centers [mm] 800-1980-3600 Max diameter of grinding wheel [mm] 710-710-915 Max weight between centers [kg] 600-800-1200
