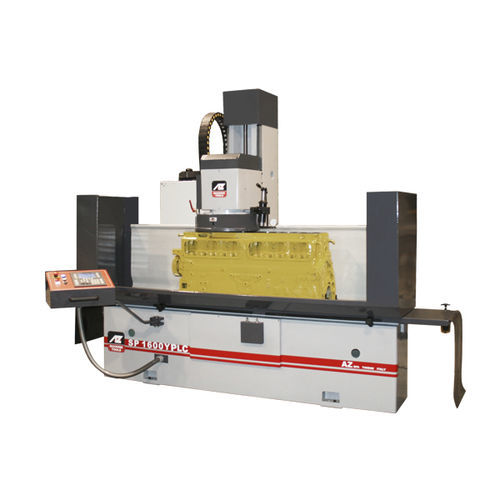

PLC model. Fully automatic-programmable working cycle.
+ VARIABLE SPEED ON THE TABLE MOVEMENT, ON THE HEAD MOVEMENT, ON THE GRINDING WHEEL
+ HEAD MOVEMENT WITH BALL SCREW SYSTEM
+ TABLE AND HEAD MOVEMENT WITH BALL SCREW SYSTEM
Automatic surface probe for engine head alignment.
Head and table movement by ball screw system. SPX series has PLC control system with automatic and programmable working cycle (preset of descent, surfacing, spark-out, automatic stop, return to start position). Variable speed on the table movement, head movement and grinding wheel rotation.
Max automatic table traverse 1600 [mm]
Max grinding width 410 [mm]
Max milling width with cutting tool 410 [mm]
Useful table surface 1400X410 [mm]
Min and max height table to wheel 0-850 [mm]
Min and max height table to tool or milling cutter 0-850 [mm]
Distance from column to table C/L 260 [mm]
Segmental wheel diameter 420[mm]
CBN milling head (optional) 420 [mm]
