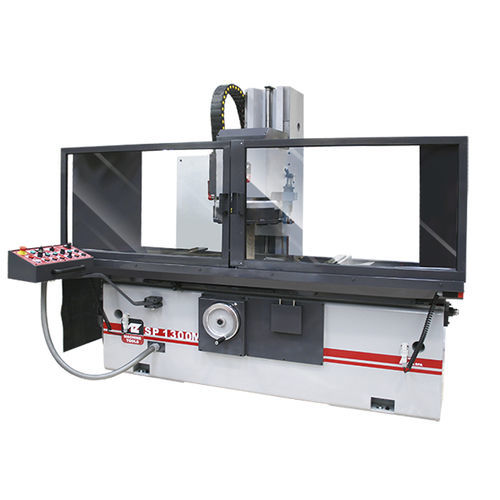

Surface grinding machine SP1300Y

cutting toolmilling cuttervertical

Surface grinders are the ideal choice for all machine shops or high performance shops. Fixturing that will set up all work pieces easy and function rapidly. Infinitely variable table traverse producing the exact surface finish desired for the wide range of gasket materials used. A power column to help the operator finish the jobs fast. Rugged cast iron base with precision ground and matched ways. Flat and "V" way construction assures accurate parallelism and side-to-side tracking. Cast iron "box" type columns with dove tail ways and precision spindle bearings make the SP Series durable and accurate machines. SPECIFICATIONS Max automatic table traverse 1300 [mm] Vertical wheelhead traverse 740 [mm] Max grinding width 340 [mm] Max milling width with cutting tool 340 [mm] Useful table surface 1100x340 [mm] Min and max height table to wheel 0-740 [mm] Min and max height table to tool or milling cutter 0-740 [mm] Distance from column to table C/L 260 [mm] CBN milling head (optional) 350 [mm]
