resistance tester / capacitance / internal resistance / battery
601B

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
resistance tester / capacitance / internal resistance / battery resistance tester / capacitance / internal resistance / battery - 601B
{{requestButtons}}

Characteristics

  • Test type:

    resistance, capacitance, internal resistance

  • Tested product:

    battery

  • Other characteristics:

    digital

Description

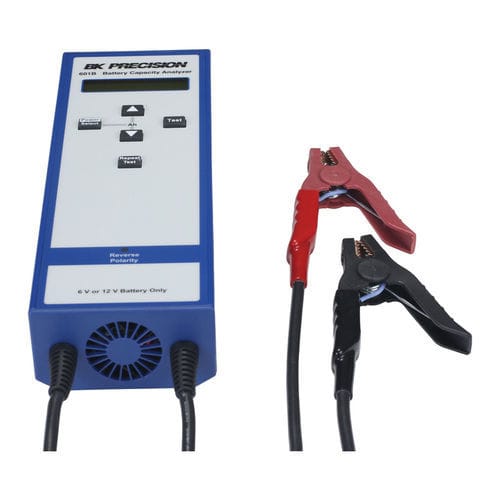

The 601B Battery Capacity Analyzer addresses the need to test and maintain sealed lead acid (SLA) batteries used in backup power UPS, emergency lighting, fire alarms, security systems, and many other electrical systems. By quickly characterizing a battery's response to a load resistance and measuring the battery's internal resistance, this meter displays the remaining battery capacity as an indicator of the battery’s health. Powered by the battery under test, the 601B supports testing of both 6 V and 12 V storage type lead acid batteries.

Measure remaining battery storage capacity in just seconds
Test 6 V and 12 V storage type lead acid batteries
Settable Ah ranges: 5 - 100 in 1 Ah steps
Easy-to-use interface
Powered by the battery under test eliminating the need for external power to instrument
High quality, durable Kelvin clamps
Rubber buttons
Rugged housing with extruded aluminum case
Internal resistance measurement
