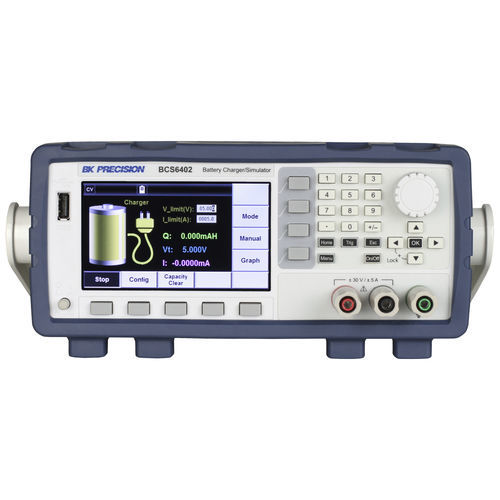

High-performance battery simulator BCS6402

high-accuracycharge/discharge testtester

The BCS Series battery charger/simulator and precision DC Power supplies are optimized for testing batteries and battery-operated devices. This series features source/sink capabilities, a bipolar output, and a variable output impedance with dedicated battery charge, discharge, and simulation modes. Additionally, both models serve as a precise single channel or dual channel DC power supply with fast transient response and low ripple/noise characteristics. Applications include evaluating batteries and charger circuitry used in cell phones, wearable devices, and other IoT devices. Features: Source or sink up to 150 W with 2-quadrant operation Compact 2U form factor Dual channel and dual range operation (model BCS6401 only) Perform battery charge, discharge, and simulation tests Bipolar output Sink current up to 5 A Variable output impedance 0 Ohm to 1 Ohm Low noise < 3 mVpp Fast load recovery time High 100 nA current readback resolution OVP, OCP, OTP, and key-lock protections USB (USBTMC-compliant) and LAN interfaces standard
