Vacuum dryer SUPRADRY

batchfor the pharmaceutical industryfor the chemical industry

Maximize drying efficiency while protecting product quality. The SUPRADRY delivers fast, homogeneous vacuum drying for powders, crystals, granules, and pastes, even with the most thermosensitive materials.

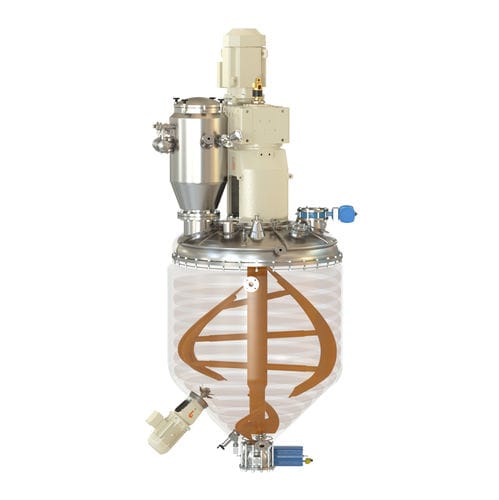

The Supradry is a vertical ribbon vacuum dryer with a maximised heating surface for the drying of all types of thermo-sensitive wet, crystalline, amorphous or paste products, with a total vacuum.

The Supradry ribbon vacuum dryer consists of a heated vertical mixing spiral, rotating at moderate speed to achieve an upward flow of perimeter product and a renewal of the product in contact with the heated walls.

ADVANTAGE
-Mechanical simplicity, low maintenance need.
-Spiral mixer in cantilever execution, without any bottom support.
-Complete unload of the product.
-Very easy to clean and register.
-Repetitive processes, reproducible and easy to scale up.

FEATURES
-Batch-wise operation under ultra vacuum.
-Maximum tightness, vacuum levels under 1 mbar.
-Atmospheric operation pressure.
-Operation temperatures up to 200º C.
-Design according to ASME VIII div.1 – AD-2000 – EN-13445.
-Sanitary design cGMP, FDA validated.
-Internally mirror polished Ra ≤ 0.6 µm (Grit 360).
-CE marking according to the Safety for Machinery Directive 2006/42/CE.

OPTIONS
-Internally electro polished Ra ≤ 0.2 µm.
-Dust filter in the vacuum outlet.
-Heated shaft and spiral.
-Choppers for lump breaking.
-CIP-SIP systems, validatable by means of Riboflavin test.
-Sampling valve.
-Executions for sterile applications.
-Agitator with mechanical seal sterilizable.
