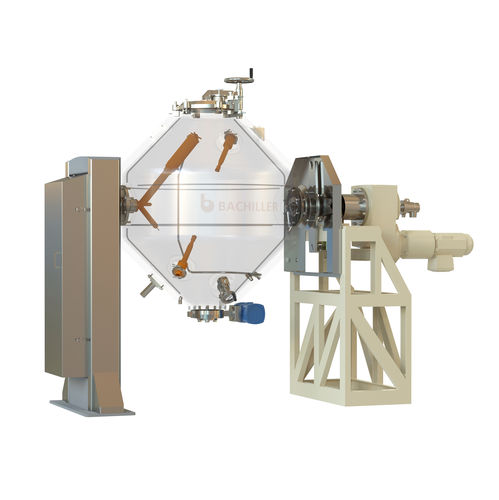

Biconical dryer BICUUM

vacuumbatchfor the chemical industry

The Bicuum by Bachiller is a double cone vacuum dryer with rotary drum, suitable for ultra-vacuum drying of all types of moist, crystalline and amorphous thermo-sensitive products. The Bicuum double cone vacuum dryer consists of a fully heated and insulated drum, which rotates at low speeds while being subjected to a strong vacuum, which continuously renews the product in contact with the hot walls. ADVANTAGES Mechanical simplicity, low maintenance required. Full tightness. Very low weight of product – power consumption ratio. Easy to clean and inspect. Repetitive, reproducible and easy to scale processes. FEATURES Batch drying under ultra vacuum. Vacuum level below 1 mbar. Atmospheric operating pressure. Operation temperatures up to 200º C. Design according to ASME VIII div.1 – AD-2000 – EN-13445. Sanitary design cGMP, FDA validated. Internally mirror polished Ra ≤ 0.6 µm (Grit 360). Externally polished in matte or mirror. ‘CE’ stamping according to Safety for Machinery Directive 2006/42/CE.
