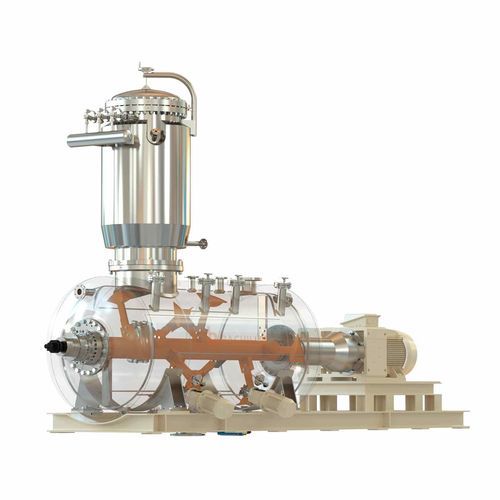

Vacuum dryer MHT-RS

paddlebatchfor the chemical industry

Turbodry is a horizontal vacuum paddle dryer and reactor designed for products with pseudo-plastic behaviour during the reaction and drying phase, where the product needs to be highly resistant to torque and turbulence. With the body and shaft completely heated to maximise thermal exchange and the paddles rotating at very high speed near the wall, the Turbodry vacuum paddle dryer reactor causes high turbulence in the product and its continuous renewal in direct thermal exchange with the wall. CAPACITIES: from 10L up to 30,000L. SUITABLE FOR THERMOSENSITIVE PRODUCTS ADVANTAGES: - Heavy duty equipment, suitable for processes with high viscosity. - Full torque utilization, variable velocity. - Maximum tightness. - Highest Thermal Efficiency, Shortest drying cycles. - Repetitive operation, reproducible and easy to scale up. FEATURES: - Capacities from 10 up to 30,000 liters. - Batch-wise operation. - Vacuum levels of 1 mbar. - Operation pressure of 6 bar(g). - Operation temperature up to 350º C. - Design according to ASME VIII div.1 – AD-2000 – EN-13445. - ‘CE’ marking according to the Safety for Machinery Directive 2006/42/CE. OPTIONS: - Internally mirror polished Ra ≤ 0.6 µm (Grit 360). - Electro polishing ≤ 0.2 µm. - Power retention filter in the vacuum outlet. - Outlet valve with metal to metal seal. - Sampling valve. - Choppers for lump breaking. - Sanitary design according to cGMP. - Condensation, vacuum and heating systems. - Control hardware and software. - Pilot plant models available. - Executions for ATEX classified areas. - ATEX execution officially certified for internal zone 0/20. - Hydraulic operation of the main motor. TYPICAL APPLICATIONS: - Fine Chemicals and Pharmaceutical: APIs, Monoclonal antibodies, cosmetics, enzymes, natural extracts, interferons and other biotechnological agents, liposomes, peptidomimetics, recombinant proteins, pharmaceutical synthesis, lyophilized vaccines, veterinary, vitamins. - Chemical: Additives for PVC, agrochemicals, biopolymers, catalysts, celluloses, composites, organometallic compounds, oxygen-sensitive compounds, stearates, fibers, graphene, graphite and specialties, herbicides, photovoltaic materials, minerals, artificial marble, nanomaterials, pigments, polymers, battery recycling, solvent recycling, resins, hygroscopic salts, sealants, wastewater treatment, effluent treatment, sludge treatment, special waste treatment. - Food: Food additives, cocoa alkalization, flavors and fragrances, colorants, meat and/or fish concentrates, food enzymes, animal extracts, algae extracts, ferments, lyophilized products, instant preparations, probiotics, proteins, vegetable proteins, bioactive peptides, fat substitutes. Technical Specifications: - Capacities: 10L to 30,000L - Suitable for thermosensitive products - Batch operation - Vacuum: up to 1 mbar - Pressure: up to 6 bar(g) - Temperature: up to 350ºC - Design standards: ASME VIII div.1, AD-2000, EN-13445 - CE marking: Machinery Directive 2006/42/CE - Options: mirror/electro polishing, ATEX, sanitary design, pilot models, control systems
