communication gateway / industrial / IoT / Ethernet

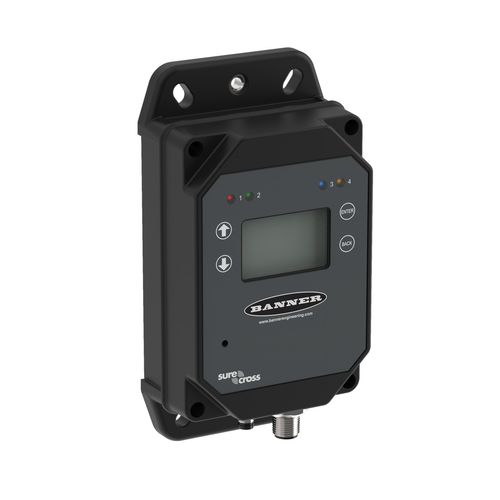

DXM SERIES

{{requestButtons}}

Characteristics

  • Type:

    communication, industrial, IoT

  • Network:

    Ethernet, Modbus, Modbus TCP/IP, Modbus/TCP, wireless, RS-485, cellular

  • Other characteristics:

    DIN rail, compact

Description

DXM Series industrial wireless controllers are designed to facilitate Ethernet connectivity and Industrial Internet of Things (IIoT) applications. Available with an internal DX80 Gateway or a MultiHop Data Radio, these powerful Modbus communications devices connect local wireless networks with the internet and/or host systems.

- ISM radios available in 900 MHz and 2.4 GHz for local wireless network
- Converts Modbus RTU to Modbus TCP/IP or Ethernet I/P
- Logic controller can be programmed using action rules and text language methods
- Micro SD card for data logging
- Email and text alerts
- Local I/O options: isolated discrete inputs, universal inputs, SPDT (Form C) relay outputs, NMOS outputs, and analog outputs
- Powered by 12 to 30 V dc, 12 V dc solar panel, or battery backup
- RS-232, RS-485, and Ethernet communications ports; and a USB configuration port
- LCD display for I/O information and user programmable LED’s
- Cell modem for cellular connectivity
