Multitouch screen HMI S100

for integrationhousedwaterproof front panel

Overview

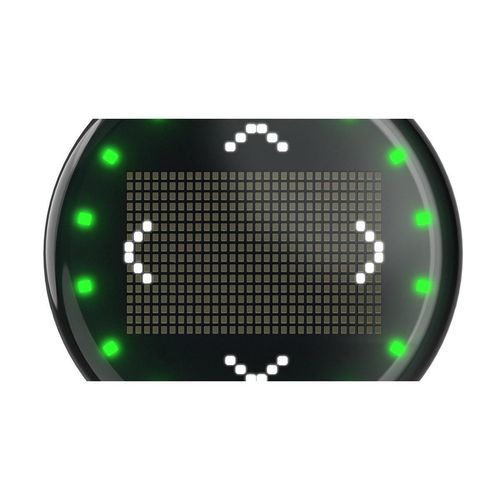

The S100 Multi-Touch Display provides a compact, configurable operator interface that bridges the gap between a traditional HMI and a push-button panel. It combines up to five touch zones with haptic feedback, an alphanumeric display, audible alerts and a ring of 16 RGB LEDs in a low-profile 100 mm washdown-capable housing. The device supports IO-Link and Modbus and can be configured with Pro Editor for discrete I/O or application-specific interfaces.

Key features

• Up to five independent touch zones with haptic feedback for point-of-use input
• Configurable on-device alphanumeric display for instructions, status, counts, timers and measurement values
• Ring of 16 configurable RGB LEDs for clear visual status/indication
• Integrated audible alerts for warnings and operator actions
• Low-profile 100 mm housing designed for washdown environments
• Prepared operating modes (examples): takt timer, counter, measurement, pick-to-light
• Supports dynamic IO-Link and Modbus control to build interfaces without a full HMI
• Configurable via Pro Editor to act as a single drop-in discrete I/O interface

Applications
Point-of-use operator interaction in machine builds and system integration projects where a compact, configurable interface is needed without the complexity of a full HMI. Typical uses include takt/timer stations, counters, measurement displays, pick-to-light points and local status/notification panels.

Notes
Designed for machine builders and system integrators seeking a low-profile, washdown-capable operator interface that integrates visual, audible and haptic feedback in one device and reduces operator-station complexity.

Technical specifications

• Touch zones: up to 5 independent zones with haptic feedback
• Alphanumeric display: configurable on-device text for instructions and values
• LEDs: ring of 16 configurable RGB LEDs
• Audible: integrated audible alert capability
• Housing: low-profile, washdown-capable 100 mm interface housing
• Communication: IO-Link and Modbus support; can operate as discrete I/O
• Deployment modes: prepared modes such as takt timer, counter, measurement, pick-to-light
• Configuration: Pro Editor for discrete I/O and interface setup
• Target use: point-of-use operator interface as an alternative to a full HMI
