Ball valve PKI
pneumaticshut-offstainless steel

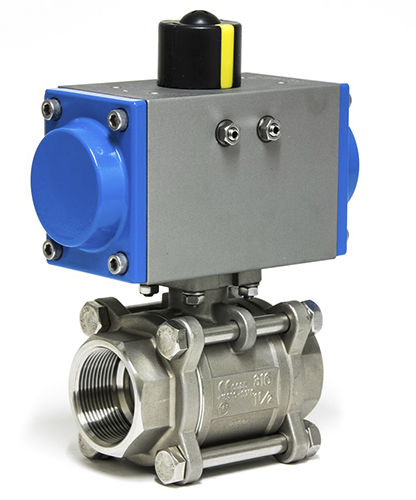

Ball valve - PKI - bar pneumatische Steuerungssysteme GmbH - pneumatic / shut-off / stainless steel
Ball valve - PKI - bar pneumatische Steuerungssysteme GmbH - pneumatic / shut-off / stainless steel
Add to favorites
Compare this product

Characteristics

Type
ball
Operation
pneumatic
Function
shut-off
Material
stainless steel
Number of channels
2/2-way
Other characteristics
automatic, double-acting, single-acting
DN

Min.: 15 mm
(0.591 in)

Max.: 100 mm
(3.937 in)

Pressure

50 bar, 63 bar
(725.2 psi, 913.7 psi)

Temperature

Min.: -20 °C
(-4 °F)

Max.: 160 °C
(320 °F)

Description

Shut-off valve is made of three stainless steel parts with floating precision ball. The valve is operated pneumatically (double- and single-acting) and is characterized by a long service life and high operational safety. PRODUCT FEATURES Full passage Maintenance-free Optionally available with end position feedback, position controllers and solenoid valves Anti-blowout spindle Usage also with vacuum and high flow velocities Alternatively also can be delivered with electric rotary actuator, hand lever or gearbox SPECIAL DESIGNS Please contact us.
