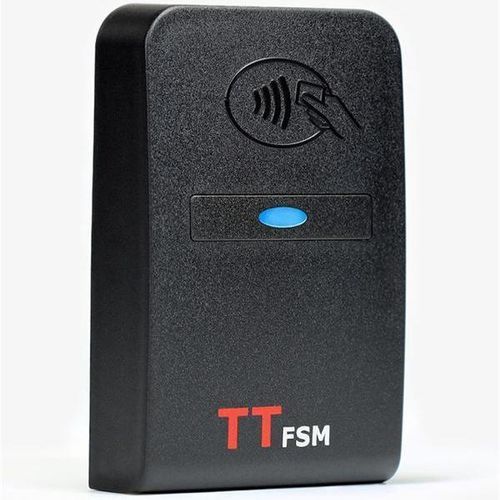

Fixed RFID reader TT FSM 1453 PRO

HFfor access controlMIFARE

Product overview
The TT FSM 1453 PRO is an access card reader designed for controlled-entry applications in industrial and commercial environments. It supports proximity and MIFARE cards, works in online and offline modes, and stores user and event data locally for reliable operation.

HARDWARE SPECIFICATIONS

• Input Voltage: 10V – 24V
• CPU: 16-bit ULP 16 MHz
• Buzzer: Yes
• Optical Input: Yes
• Solid State Relay (SSR): Yes
• RTC (Real-Time Clock): Yes
• LED: Yes
• Operating Temperature: -10°C to +70°C

RF SPECIFICATIONS

• RF Operating Frequency: 125 kHz or 13.56 MHz
• RF Reading Distance: 2 – 10 cm
• Card Support: Proximity or MIFARE

OPERATION SPECIFICATIONS

• Operation Mode: Online or Offline
• Cards Per User: 1
• Anti-Passback Logic: Yes
• User Capacity: 50,000 users
• Access Event Memory: 100,000 events
• Device Event Memory: 56,000 events
• Backup Event Memory: 10,000 events
• Blacklist Capacity: 8,000 cards
• Remote Update: Yes
