Piston compressor MARINER II-D
breathing airairdiesel engine

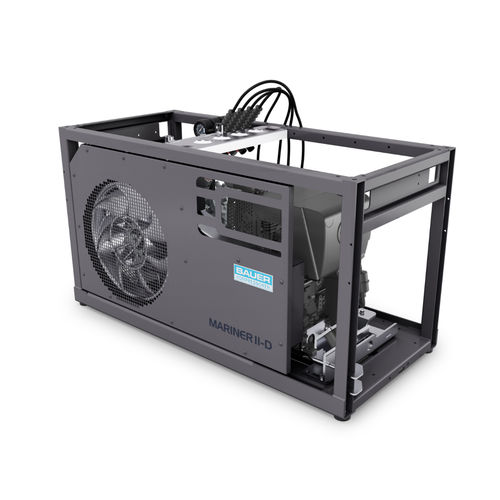

Piston compressor - MARINER II-D  - BAUER KOMPRESSOREN GmbH - breathing air / air / diesel engine
Piston compressor - MARINER II-D  - BAUER KOMPRESSOREN GmbH - breathing air / air / diesel engine
Piston compressor - MARINER II-D  - BAUER KOMPRESSOREN GmbH - breathing air / air / diesel engine - image - 2
Piston compressor - MARINER II-D  - BAUER KOMPRESSOREN GmbH - breathing air / air / diesel engine - image - 3
Piston compressor - MARINER II-D  - BAUER KOMPRESSOREN GmbH - breathing air / air / diesel engine - image - 4
Piston compressor - MARINER II-D  - BAUER KOMPRESSOREN GmbH - breathing air / air / diesel engine - image - 5
Piston compressor - MARINER II-D  - BAUER KOMPRESSOREN GmbH - breathing air / air / diesel engine - image - 6
Piston compressor - MARINER II-D  - BAUER KOMPRESSOREN GmbH - breathing air / air / diesel engine - image - 7
Piston compressor - MARINER II-D  - BAUER KOMPRESSOREN GmbH - breathing air / air / diesel engine - image - 8
Piston compressor - MARINER II-D  - BAUER KOMPRESSOREN GmbH - breathing air / air / diesel engine - image - 9
Piston compressor - MARINER II-D  - BAUER KOMPRESSOREN GmbH - breathing air / air / diesel engine - image - 10
Piston compressor - MARINER II-D  - BAUER KOMPRESSOREN GmbH - breathing air / air / diesel engine - image - 11
Piston compressor - MARINER II-D  - BAUER KOMPRESSOREN GmbH - breathing air / air / diesel engine - image - 12
Piston compressor - MARINER II-D  - BAUER KOMPRESSOREN GmbH - breathing air / air / diesel engine - image - 13
Piston compressor - MARINER II-D  - BAUER KOMPRESSOREN GmbH - breathing air / air / diesel engine - image - 14
Piston compressor - MARINER II-D  - BAUER KOMPRESSOREN GmbH - breathing air / air / diesel engine - image - 15
Add to favorites
Compare this product

Characteristics

Technology
piston
Type
air, breathing air
Power source
diesel engine
Portability
portable
Application domain
industrial
Other characteristics
high-pressure, three-stage
Pressure

Min.: 90 bar
(1,305.34 psi)

Max.: 330 bar
(4,786.25 psi)

Flow

Min.: 170 l/min
(44.91 us gal/min)

Max.: 350 l/min
(92.46 us gal/min)

Power

5 kW, 7.9 kW, 10 kW
(6.8 hp, 10.74 hp, 13.6 hp)

Length

110 cm, 150 cm
(43.31 in, 59.06 in)

Width

58 cm, 60 cm
(22.83 in, 23.62 in)

Height

625 mm, 725 mm
(24.61 in, 28.54 in)

Weight

158 kg, 250 kg, 315 kg
(348.3 lb, 551.2 lb, 694.5 lb)

Description

Mobile, diesel-powered 170–350 l/min unit for breathing air applications up to 330 bar Full power— off the grid: the MARINER II-D diesel-powered compressor delivers autonomous breathing air supply under extreme conditions — reliable, robust, and highly mobile. Certified Breathing Air Quality The BAUER MARINER II-D delivers independently tested and accredited breathing air quality that not only meets but exceeds international standards such as EN 12021:2014, CGA/ANSI Grade E, and other relevant norms – ensuring maximum safety for every application. High-Output Diesel Engine The MARINER II-D is equipped with a robust, high-output diesel engine, the most powerful in its class, delivering maximum independence, high energy efficiency, reliability, and long service life for continuous mobile operation. Robust Design for Extreme Applications The MARINER II-D features a steel frame and is consistently designed for the harshest operating conditions. Its robust components ensure corrosion-resistance, reliability, and stable performance even in extreme environments, including marine applications. Highest Delivery Rate in Its Class With a delivery rate of up to 350 l/min, the MARINER II-D offers the highest filling capacity in its class, ensuring maximum availability, short operating times, and efficient workflows in professional use. Premium Quality BAUER breathing air compressors are manufactured to state-of-the-art production standards using precisely matched components. High-quality materials, precision manufacturing, and rigorous quality control ensure long service life, high reliability, and consistent performance under the harshest operating conditions.
