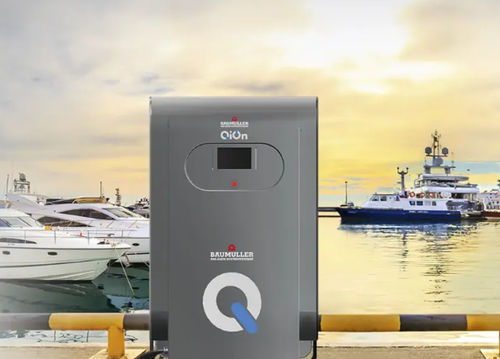

AC charging station

DCoutdoor

Overview
Baumüller delivers marine charging and shore-power systems for hybrid and fully electric vessels as well as port infrastructure. Solutions cover night and periodic charging, fast-charging stations and complete shore-power installations. System architectures are adapted to vessel type and operational profile to optimise berth integration and grid impact.

Charging solutions & flexibility
Modular architectures allow manual plug-in charging, CCS2-equipped fast chargers, automated pantograph/telescopic charging via cranes and customised interfaces. Optionally integrated battery storage at berth reduces grid demand and enables cost-optimised charging sequences.

Charging points & capacities

• Nighttime/manual plug charging: up to 22 kW
• Manual CCS2 charging stations: up to 425 kW per plug
• Automatic stations (pantograph / telescopic / crane solutions): up to 4 MW
• System bandwidth / terminal power: up to 5.6 MW
• CCS2 sockets: up to ~500 A per plug (future extension to up to 3,000 A per plug with MCS)

Customer benefits

• Complete product range from converters to EMS/BMS and drive components
• Integrated engineering for charging + drive technology and project execution
• Scalable solutions adapted to vessel class and port constraints
• Worldwide service and fast decision paths via a globally active family business

Application examples / References
Example: Electrification of passenger ship MS Ceresio — 840 kWh battery, full charge in ~20 minutes using a manual fast-charging station with a 2 MW transformer at berth. References include shipyards, system integrators and shipowners for shore power and fast-charging projects.

Onshore power supply
Shore-power installations provide emission-free onboard services during berthing and are a cost-effective alternative to diesel generators. Equipment is installed at berths or boarding bridges and can be integrated with local energy management and storage.

Standard alternatives for charging interfaces

• Autonomous telescopic charging via loader crane
• Pantograph (tappet) charging systems
• Manual charging stations (plug & CCS2)

Products & systems linked to marine drives

• Ship motors: DST2
• Main drives / DS2
• Control platforms and combined PLC/PC solutions
• Energy management and battery management systems

Technical specifications

• Maximum system power: up to 5.6 MW (depending on architecture)
• Manual plug charging: up to 22 kW
• Manual CCS2 charging: up to 425 kW per plug
• Automatic charging (pantograph/telescopic/crane): up to 4 MW
• CCS2 sockets: up to ~500 A per plug; MCS future: up to 3,000 A per plug
• Fast-charging connectors: CCS2 (AC & DC capable)
• Example: MS Ceresio — 840 kWh battery, full charge ~20 min with 2 MW transformer at berth
