TFT display 818

colorbar graph320 x 240

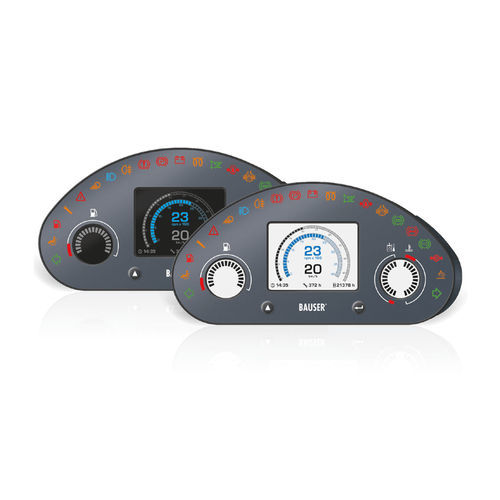

The instrument cluster with 3 displays, one square 3.5” TFT colour display at the centre and two round TN displays, provides you everything to keep the vehicle data under control. On request the bar graph segments of the round displays can be inverted (coloured segments). The design of the colour display can be customdesigned. A variety of cluster options are available for you. Casing: Material: PBT-GB30, black Front side: chemical and UV resistant polyester foil Viewing area: low-reflective mineral glass Aspect ratio: 4:3 Round Displays: 2x 26 bar graph segments, TN Technology, backlight: RGB colour LEDs, bar graph segments black Warning lamps: 21 LEDs, 3 of them RGB colour LEDs, can be read clearly under direct sunlight Buttons: 2 buttons with a clear tactile feedback Electrical connection: 3x analogue inputs (custom configuration) 17x digital inputs (1x load resistor for pre-excitation of the alternator) 1x voltage supply measuring 2x FET output, maximum 500 mA 1x CAN ISO 11898 interface Protocol: CANopen, SAE J1939 Date and time: Real Time Clock with internal battery backup Voltage supply: 8…36 VDC Ambient temperature: -30°C…+85°C Storage temperature: -40°C…+85°C Electrical connection: Tyco Super Seal, 26 poles Fixing: metal clamp with screws Protection class: IP67 front, IP40 back (optionally IP65) Vibration resistance: EN 60068-2-64 Shock resistance: EN 60068-2-27, EN 60068-2-29
