LED display 819

TFTdot-matrixgraphic

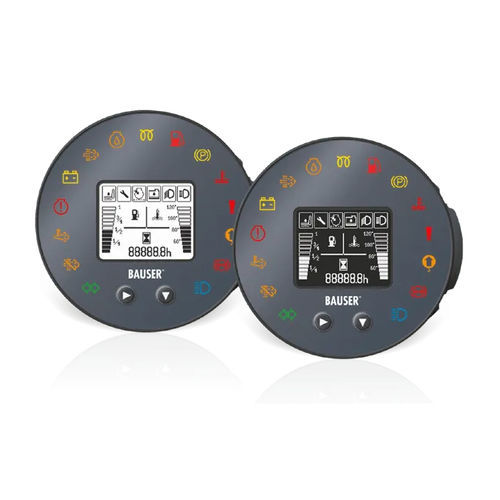

Graphic display Circular instrument with one Dot-Matrix display, 160 x 128 dots, 2 buttons and 15 LEDs. Indicates excellently the vehicle functions and like all other BAUSER instruments the clusters are constructed to withstand rough applications. Exactly what our long lasting OEM customers of the vehicle sector rely on. Further advantages: from one standard solution in hard- and software a rapid custom realisation can be achieved at very attractive prices. Casing: Material: plastic PC-ABS Front side: chemical and UV resistant polyester foil Viewing area: glass with low reflection Display: 1x Dot-Matrix display, 160x128 Dots, ASTN Technology Backlit: white LED Indication: Maximum 15 LEDs, Perfectly readable under direct sunlight Buttons: 2 buttons with backlit Electrical interfaces: 16x digital inputs, 3x analogue inputs (R, I, U) 2x Count input (speed, rpm) 1x CAN ISO 11898 Supply voltage: 8…36 VDC Ambient temperature: -20° C…+85° C Storage: -40° C…+85° C Electrical connection: Tyco super seal, 26 poles Fixing: Metal clamps with screws Protection class: IP67 front, IP40 back (optional IP65) Vibration resistance: EN 60068-2-64 Shock resistance: EN 60068-2-27, EN 60068-2-29 EMC: EN 12895, EN 13309, DIN 40839-1 Approval: CE Options: Custom front foil, backlit: blue, CANopen and/or SAE J1939 software interface, real time clock, GoretexTM membrane, back IP65, buzzer, fixing with snap-in-clamps, casing shorter, horizontal mounted display, TFT colour display
