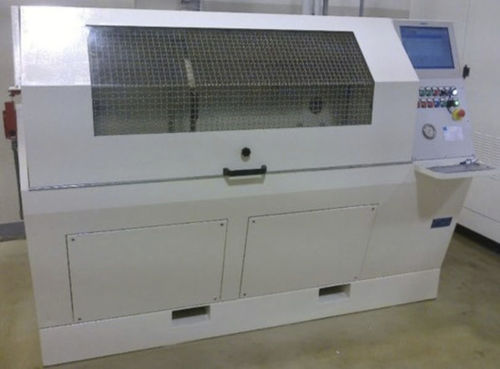

Burst test stand B_21472
for burst testingautomaticPC-controllable

burst test stand
burst test stand
burst test stand
burst test stand
Add to favorites
Compare this product


Characteristics

Test type
burst, for burst testing
Operating mode
automatic, PC-controllable
Test material
hose, for fittings, valve, for pipe, for heat exchanger
Sector
for the automotive industry, industrial
Technology
hydraulic

Description

The test fluid is hydraulic oil. The machine, with various options, can performs: - Pressure test Using a dedicated hydraulic circuit the test bench is able to generate a test cycle done by maintenance and controlled pressure ramps, up and down, according to the following: SAEJ343 - DIN20024 - ISO18869 - ISO1402. The connection system consist of two manifolds: one fixed and the other sliding on a suitable guide able to contain the stresses coming from burst test. Maximum distance between collector connections: 1600 mm. The working cycle is: • Setting pressure cycle with ramps and stationary steps by inserting pairs of points (time-pressure). • Filling and deaeration phase with flow visual indication. • Stabilizing pressure • Pressure test: from 3 up to 300 bar; • Flow rate: 10 lpm • Max temperature: 100 °C. • Pressure transmitter: f.s. 400 bar, cl 0,25% • Open doors electric control & interlock • Test area with metal lids against shots and fluid leaks • Emergency button • Electric: 400 Vac - 50 Hz – 20 kW • Air: 6 bar • L, p, h: 3200 x 1600 x 1700 mm; • Raw load: ~ 1600 kg • Standard Gray 7035.
