Optical data cable BayCom® A-DQ(ZN)2Yflame-retardantwatertightoutdoor
Add to favorites
Compare this product
Characteristics
- Type
- data
- Protection
- flame-retardant, watertight
- Applications
- outdoor, for indoor use, for telecommunication networks, for railway applications
- Other characteristics
- halogen-free
- Temperature
Max.: 75 °C
(167 °F)Min.: -5 °C
(23 °F)
Description

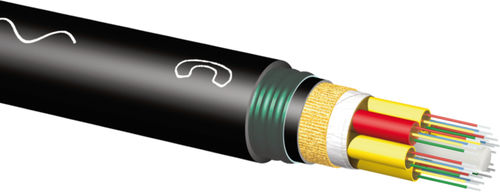

Non-armoured dry-filled FO outdoor cable of Deutsche Bahn for general cabling in the track area for laying in pipe and cable ducts.
central non-metallic support element
optical fibers (E9/125)
filled loose tubes with 2 to 24 fibers each
cable core filled dryly, longitudinally watertight
non-metallic strain-relief elements
outer sheath, PE, black
The FO outdoor cables according to DB TL 416.0505 can be laid - in to the ground by pulling or blowing into a previously laid HDPE pipe or - in ducts along railway lines. Use, planning and laying must be carried out in accordance with the applicable DB AG guidelines. The cables are approved for use on the DB AG network.
Design according to customer specifications on request
