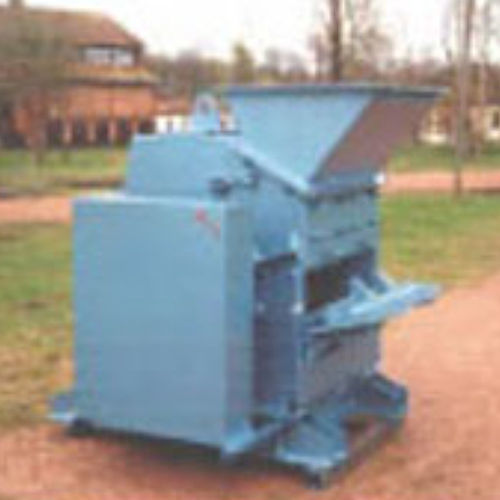

Grain mill T seriesrotorhorizontalcompact
Add to favorites
Compare this product
Characteristics
- Product applications
- grain
- Technology
- rotor
- Orientation
- horizontal
- Other characteristics
- compact
- Sector
- for recycling
- Motor power
Max.: 250 kW
(339.91 hp)Min.: 15 kW
(20.39 hp)- Machine width
Max.: 2,000 mm
(79 in)Min.: 300 mm
(12 in)- Machine weight
Max.: 20,000 kg
(44,092 lb)Min.: 1,500 kg
(3,307 lb)
Description
The TH, TFH and TSH hammer mills are suitable for shredding tough, fibrous materials that are slightly damp.
Frame :
Electro-welded structure in thick ribbed sheet metal. It is made up of two articulated housings on hinges, giving the widest possible access to wear parts. Hydraulic opening from TFH 800x 1000. It supports the rotor, the frame armouring, the calibration grid or the shredding harrow, depending on the work to be carried out.
Grids :
Made from thick, perforated sheet steel to suit the grain size required.
Rotor :
A steel alloy shaft
Discs turned and keyed on the shaft
4 steel alloy hammer shafts
Assembly supported by two spherical bearings
Heavy special steel alloy or 12/14% manganese hammers
