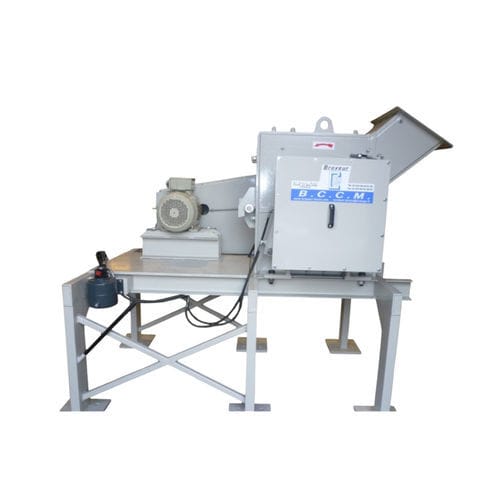

Grain mill BME series

wastehammervertical

The BME mill’s yoke hammer system has proved its worth in grinding semi-hard and hard materials Hundreds of “BMEs” are used in the refractory product, lime, plaster and agglomerate industries, limestone and dolomite quarries, coal mines, slate and ore mines, etc., and for processing a wide range of waste products: Metallic turnings, foundry dross and sand, bones, smoke discharge pipes, etc. Frame Electro-welded structure in thick ribbed sheet metal, fully protected by bolted anvil plates and armouring. Hydraulic opening from no. 7. Grids Made from thick sheets of special steel, perforated to suit the grain size required. Rotor Generously dimensioned shaft, fully protected by disc sleeves and mounted on spherical roller bearings. Independent, balanced hammer holder discs and flywheel, forming a high inertia unit. Hammers made of manganese steel or special alloy steel. For certain applications, bolt-on wear pads are provided.
