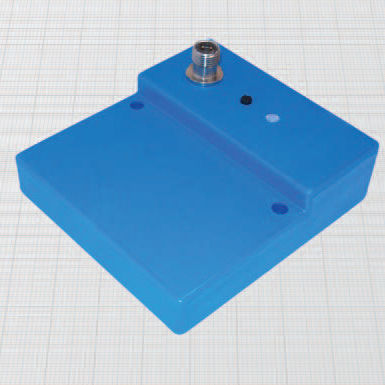

Inductive proximity sensor ACR/...S series

rectangularIP65with amplified output

• Type R - Adjustable sensing distance • Amplified in a.c. 2 wires • Cable and connector output M12 x 1 General Features: These sensors are suitable for non flush mounting and have the adjustable sensing distance turning a multiturn potentiometer. Technical data: • Supply voltage (UB): 20 ÷ 240 Vac • Electrical system frequency: 40 ÷ 60 Hz • Off-state current (Ir ): ≤1,5 mA at 110 Vac • Minimum operational current (Im): 5 mA • Voltage drop (Ud): ≤ 5 V • Temperature range: - 20° ÷ + 70°C • Max thermal drift of sensing distance Sr : ± 10% • Repeat accuracy (R): 2% • Switching hysteresis (H): 10% • Degree of protection: IP65 • Switch status indicator: yellow LED • Cable conductor cross section (cable version): 0,75 mm2 • Suppression of initial false impulse • Class 2 equipment according to IEC 536 • Shock and vibration according to EN60068-2-27 EN60068-2-6 • Electromagnetic compatibility (EMC) according to EN60947-5-2 Materials: • Cable: 2 m PVC CEI 20 - 22 II; 90°C; 300 V; O.R. • Housing: plastic • Connector: nickel plated brass
