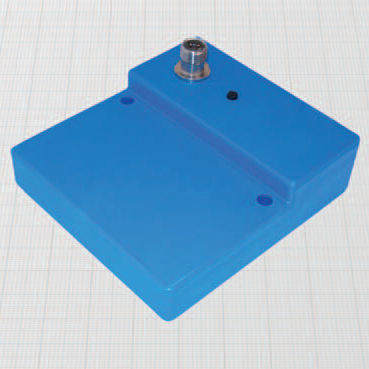

Inductive proximity sensor DCR series
rectangularNAMURIP65

inductive proximity sensor
inductive proximity sensor
Add to favorites
Compare this product


Characteristics

Technology
inductive
Shape
rectangular
Output signal
NAMUR
Protection level
IP65
Measuring range

Min.: 10 mm
(0.39 in)

Max.: 55 mm
(2.17 in)

Description

• NAMUR SERIES - Type R - Adjustable sensing distance • Non-amplified in d.c. 2 wires • Cable and connector output M12 x 1 General Features: These sensors are suitable for non flush mounting and have the adjustable sensing distance turning a multiturn potentiometer. Technical data: • Working voltage: 5 ÷ 30 Vdc • Supply voltage according to NAMUR: 7,7 ÷ 9 Vdc • Max ripple: 10% • Consumption at 8,2 V con Rx = 1000 Ω with metal: ≤ 1 mA without metal: ≥ 3 mA • Temperature range: - 20° ÷ + 70°C • Max thermal drift of sensing distance Sr : ± 10% • Repeat accuracy (R): 4% • Degree of protection: IP65 • Cable conductor cross section (cable version): 0,75 mm2 • According to EN60947-5-6 • Electromagnetic compatibility (EMC) according to EN60947-5-2 • Shock and vibration resistance according to EN60068-2-27 EN60068-2-6 • For certified ATEX version see ATEX Catalogue Materials: • Cable: 2 m PVC CEI 20 - 22 II; 90°C; 300 V; O.R. • Housing: plastic • Connector: nickel plated brass
