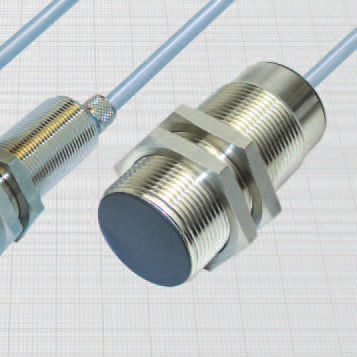

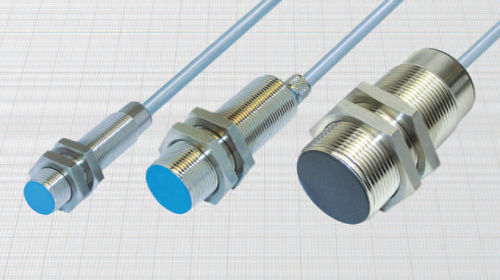

Inductive proximity sensor DCA12-30...MB series
cylindricalexplosion-proofwith amplified output

inductive proximity sensor
inductive proximity sensor
Add to favorites
Compare this product


Characteristics

Technology
inductive
Shape
cylindrical
Protection level
explosion-proof
Other characteristics
with amplified output
Measuring range

2 mm, 5 mm, 10 mm
(0.08 in, 0.2 in, 0.39 in)

Description

AMPLIFIED IN d.c. 3-wire • ATEX certified II 2GD for zone 1;21 • Associated apparatus not required - Cable output • Technical data: • Supply voltage (UB): 7 ÷ 30 Vdc • Max ripple: 10% • No-load supply current (Io): ≤ 10 mA • Voltage drop (Ud): < 1,5 V • Temperature range: - 20° ÷ + 60°C • Max storage temperature: + 85°C • Max thermal drift of sensing distance Sr : ± 10% • Repeat accuracy (R): 2% • Switching hysteresis max (H): 10% • Degree of protection: IP67 for diameters 12 and 30 mm IP68 for diameter 18 mm • Switch status indicator: yellow LED • Cable conductor cross section: 0,35 mm2 for diameter 12 mm 0,50 mm2 for diameter 18 mm 0,50 mm2 for diameter 30 mm • Marking: II 2D Ex mbD 21 T80°C II 2G Ex mb II T6 • Certified IMQ 08 ATEX 002 X • Protected against short-circuit and overload • Protected against any wrong connection • Suppression of initial false impulse • Electromagnetic compatibility (EMC) according to EN60947-5-2 • According to: EN60079-0/EN60079-18/EN60079-26 • Shock and vibration resistance according to EN60068-2-27/EN60068-2-6 Use in hazardous area according to instruction manuals
