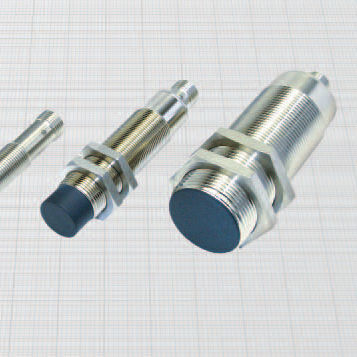

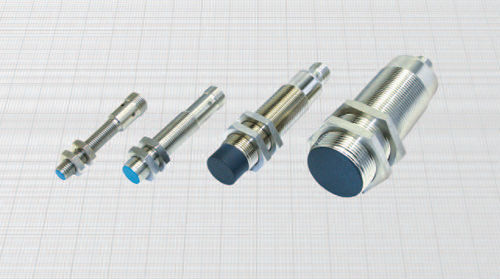

Inductive proximity sensor DCA8-30...KS3GD series

cylindricalIP67with amplified output

AMPLIFIED IN d.c. • ATEX certified II 3GD for zone 2;22 • Connector output M12x1 • Technical data: • Supply voltage (UB): see ordering references • Max ripple: 10% • Rated operational current (Ie): 100 mA • No-load supply current (Io): ≤ 10 mA • Voltage drop (Ud): < 1,5 V • Temperature range: - 25° ÷ + 60°C • Max thermal drift of sensing distance Sr : ± 10% • Repeat accuracy (R): 2% • Switching hysteresis max (H): 10% • Degree of protection: IP67 • Switch status indicator: yellow LED • Marking: II 3D Ex tc IIIC T80°C IP67 X II 3G Ex nAc IIC T6 X • Protected against short-circuit and overload • Protected against any wrong connection • Suppression of initial false impulse • Electromagnetic compatibility (EMC) according to EN60947-5-2 • According to: EN60079-0/EN60079-15/EN60079-31 • Shock and vibration resistance according to EN60068-2-27/EN60068-2-6 Use in hazardous area according to instruction manuals
