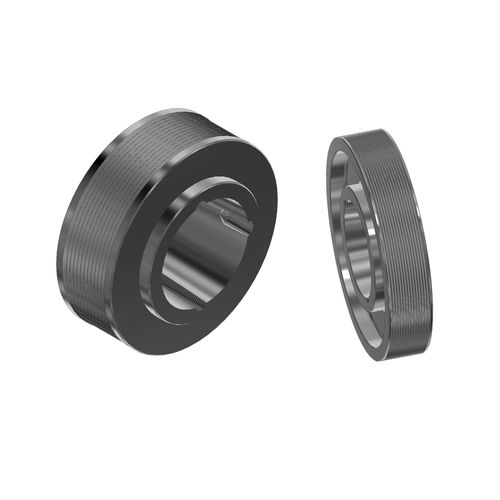

Groove pulley T/L type "J" 8
with taper bushingribbed beltcast iron

Groove pulley - T/L type "J" 8 - BEA Ingranaggi - with taper bushing / ribbed belt / cast iron
Groove pulley - T/L type "J" 8 - BEA Ingranaggi - with taper bushing / ribbed belt / cast iron
Groove pulley - T/L type "J" 8 - BEA Ingranaggi - with taper bushing / ribbed belt / cast iron - image - 2
Groove pulley - T/L type "J" 8 - BEA Ingranaggi - with taper bushing / ribbed belt / cast iron - image - 3
Groove pulley - T/L type "J" 8 - BEA Ingranaggi - with taper bushing / ribbed belt / cast iron - image - 4
Groove pulley - T/L type "J" 8 - BEA Ingranaggi - with taper bushing / ribbed belt / cast iron - image - 5
Groove pulley - T/L type "J" 8 - BEA Ingranaggi - with taper bushing / ribbed belt / cast iron - image - 6
Groove pulley - T/L type "J" 8 - BEA Ingranaggi - with taper bushing / ribbed belt / cast iron - image - 7
Groove pulley - T/L type "J" 8 - BEA Ingranaggi - with taper bushing / ribbed belt / cast iron - image - 8
Add to favorites
Compare this product

Characteristics

Type
groove, with taper bushing
Applications
ribbed belt
Material
cast iron
Outside Diameter

Min.: 40 mm
(1.57 in)

Max.: 315 mm
(12.4 in)

Width

Min.: 29.1 mm
(1.15 in)

Max.: 42 mm
(1.65 in)

Weight

Min.: 0.24 kg
(0.53 lb)

Max.: 9.57 kg
(21.1 lb)

Description

POLY-V PULLEYS FOR TAPER BUSH Our Poly-V pulleys are manufactured according to International Standard ISO 9982 / DIN 7867 Material Cast iron EN-GJL-200 (G20 - UNI 5007) Protective treatment and balancing The surface of all our standard Poly-V pulleys is protected by phosphated treatment. All the pulleys are Statically Balanced and can be used for peripheric speed up to 30 m/sec
