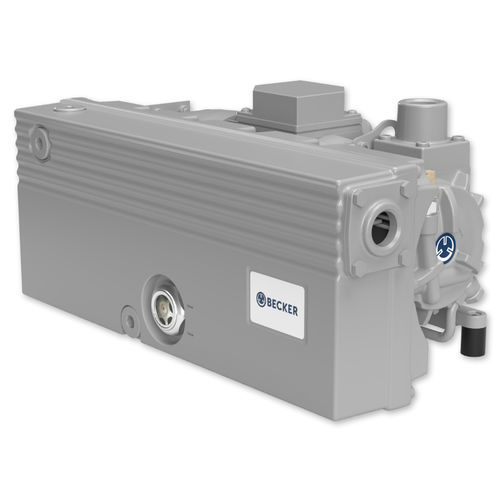

Rotary vane vacuum pump O 5.25 (XL K)
oil-lubricatedsingle-stagewater

rotary vane vacuum pump
rotary vane vacuum pump
rotary vane vacuum pump
Add to favorites
Compare this product


Characteristics

Technology
rotary vane
Lubrication
oil-lubricated
Number of stages
single-stage
Applications
water
Other characteristics
compact, small
Ultimate vacuum

2 mbar
(0.03 psi)

Flow rate

26 m³/h, 30 m³/h
(918.18 ft³/h, 1,059.44 ft³/h)

Power

0.75 kW, 0.9 kW
(1.02 hp, 1.22 hp)

Length

432 mm
(17 in)

Height

211 mm, 219 mm
(8.31 in, 8.62 in)

Noise level

63 dB, 66 dB

Weight

24.5 kg
(54.01 lb)

Description

Rotary vane vacuum pumps, oil-lubricated The O 5.25 is a deep vacuum, displacement pump ideally suited for use in packaging and food processing machines. The oil-lubricated rotary vane vacuum pump has freely configurable service openings and high water vapour tolerance. Non return valve High efficiency oil separator element Freely configurable service openings (some models) Features High efficiency oil separator element Air-cooled Single shaft direct drive Compact design Freely configurable service openings for oil sight glass, oil inlet, oil outlet and accessories (some models) Benefits Cool and quiet operation Quiet operation – no silencer enclosures necessary Small footprint for space savings Straightforward construction for fast and easy service on-site to reduce downtime Best cold start performance High water vapour tolerance Robust and long-lasting
