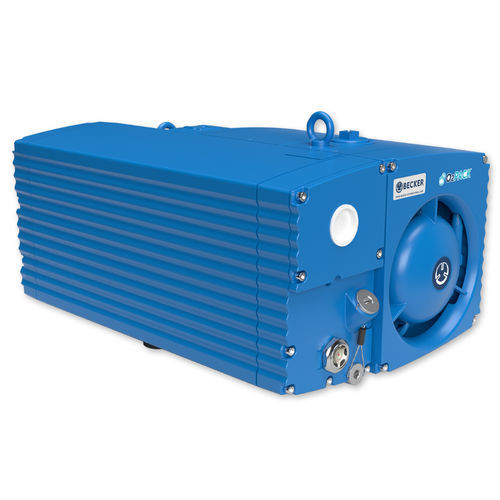

Rotary vane vacuum pump U 5.301 O2-PACK
oil-lubricatedsingle-stagegas

rotary vane vacuum pump
rotary vane vacuum pump
Add to favorites
Compare this product


Characteristics

Technology
rotary vane
Lubrication
oil-lubricated
Number of stages
single-stage
Applications
gas, water
Other characteristics
small
Ultimate vacuum

0.5 mbar
(0.01 psi)

Flow rate

300 m³/h, 360 m³/h
(10,594.4 ft³/h, 12,713.28 ft³/h)

Power

5.5 kW, 6.6 kW
(7.48 hp, 8.97 hp)

Width

549 mm
(21.61 in)

Height

409 mm
(16.1 in)

Noise level

73 dB, 76 dB

Weight

205 kg
(451.95 lb)

Description

Rotary vane vacuum pumps, oil-lubricated The U 5.301 O2-PACK is a deep vacuum, displacement pump ideally suited for the vacuum packaging of food. Becker's U series can be used across a wide range of applications from vacuum chamber machines, form-fill-seal machines and tray sealer. Gas ballast valve Non return valve High efficiency oil separator element Features High efficiency oil separator element XL oil tank with dual stage oil separation Robust and long-lasting Benefits Low operation and maintenance costs Cool and quiet operation Small footprint for space savings Straightforward construction for fast and easy service on-site to reduce downtime Best cold start performance High water vapour tolerance Robust and long-lasting
